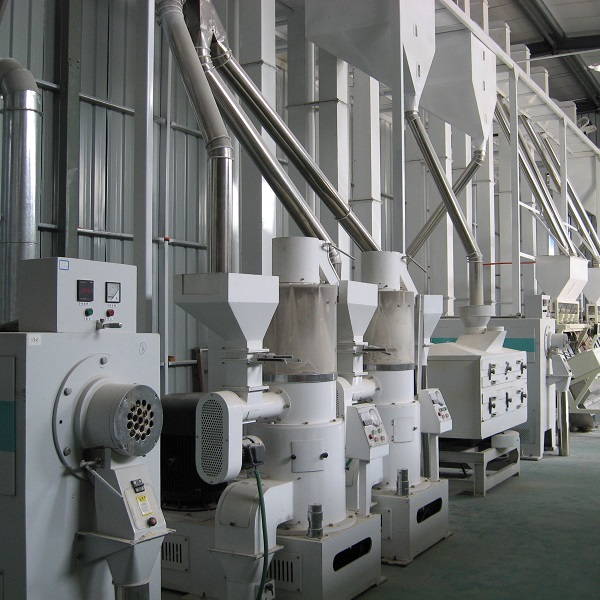

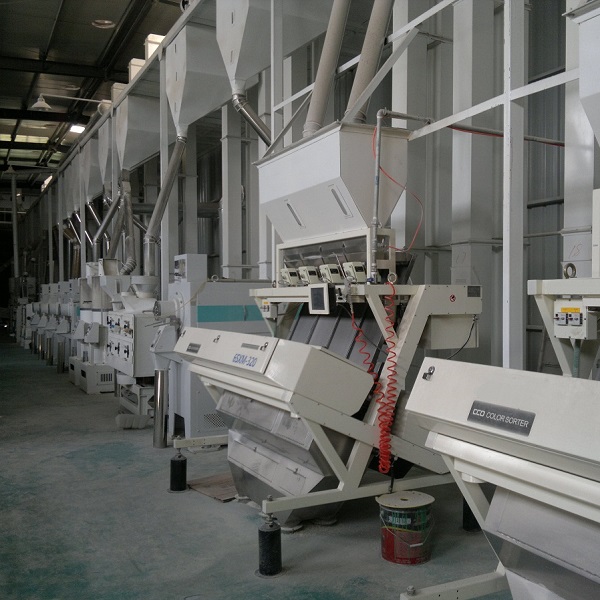

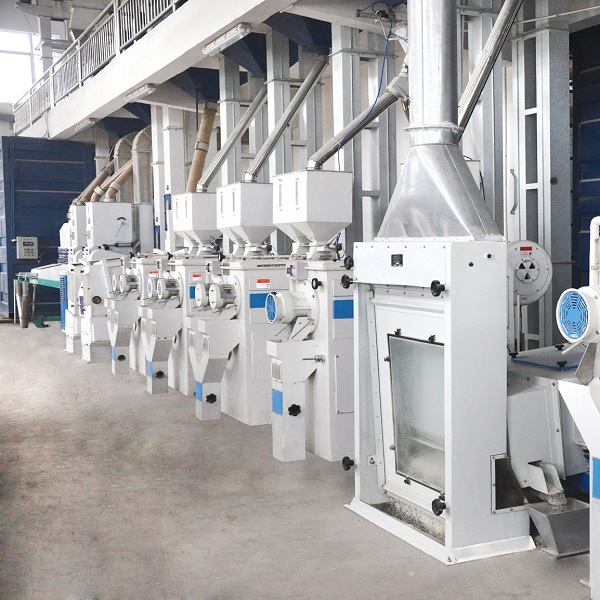

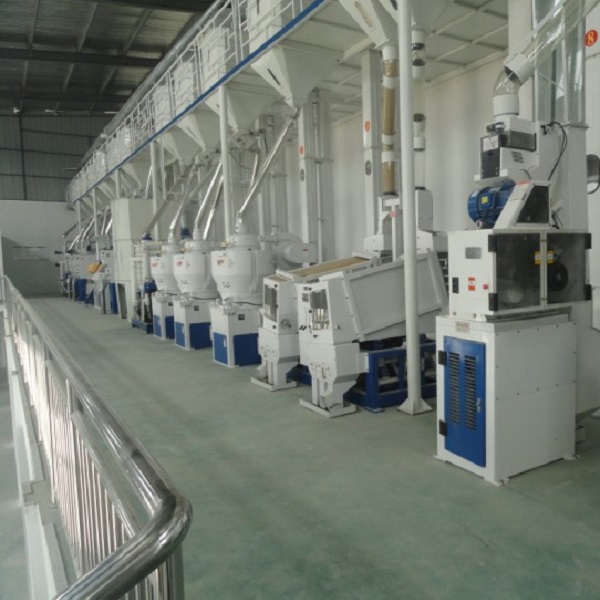

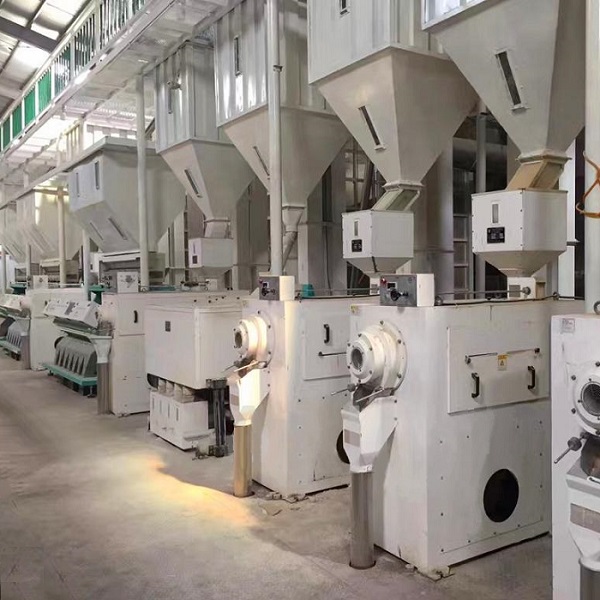

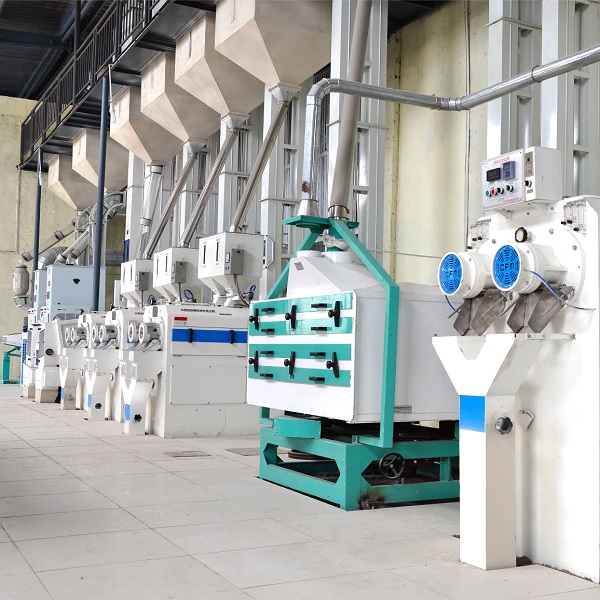

120T/D Modern Rice Processing Line

120T/day modern rice processing line is a a new generation complete rice milling line which can produce about 5 ton white rice per hour. This rice plant include paddy cleaner, destoner, rice husker, rice whitener, rice grader, mist polisher, color sorter, packing machine, etc..

The 120T/day modern rice processing line is a new generation rice milling plant for processing raw paddy from cleaning rough impurities such as leaves, straws and more, removing stones and other heavy impurities, husking the grains into rough rice and separating rough rice to polish and clean rice, then grading the qualified rice into different grades for packaging.
The complete rice processing line includes pre-cleaning machine, vibrating sieve cleaner, suction type de-stoner, rice husker, paddy separator, rice whiteners, water mist polisher, rice grader and color sorter, automatic packing machine, main working machines and magnet sorter, conveyors, electrical control cabinet, collecting bins, dust-discharging systems and other accessories, also as per request the steel storage silos and paddy drying machine can be supplied, too.
FOTMA machines has been widely exported to Nigeria, Australia, Indonesia, Iran, Guatemala, Malaysia, etc., and also we got rich experiences from these overseas rice milling projects.
The 120t/day modern rice processing line includes the following main machines:
1 unit TCQY100 Cylindrical Pre-cleaner(optional)
1 unit TQLZ150 Vibrating Cleaner
1 unit TQSX125 Destoner
2 units MLGQ25E Pneumatic Rice Hullers
1 unit MGCZ46×20×2 Double Body Paddy Separator
3 units MNMLS40 Vertical Rice Whiteners
2 units MJP150×4 Rice Graders
2 units MPGW22 Water Polishers
2 units FM5 Rice Color Sorter
1 unit DCS-50S Packing Scale with Double Feeding Hoppers
4 units W15 Low Speed Bucket Elevators
12 units W6 Low Speed Bucket Elevators
1 set Control Cabinet
1 set dust/husk/bran collection system and installation materials
Capacity: 5t/h
Power Required: 338.7KW
Overall Dimensions(L×W×H): 35000×12000×10000mm
The optional machines for 120t/d modern rice processing line:

Thickness grader,
Length Grader,
Rice Husk Hammer Mill,
Bags type dust collector or Pulse dust collector,
Magnetic separator,
Flow Scale,
Rice Hull Separator, etc..
The features of 120t/day modern rice processing line:
1. This rice processing line can be used to process both long-grain rice and short-grain rice(round rice), suitable to produce both white rice and parboiled rice, high output rate, low broken rate;
2. Use vertical type rice whiteners, high yield bring you high profit;
3. Equipped with pre-cleaner, vibration cleaner and de-stoner, more fruitful on impurities and stones removing.
4. Two water polishers and rice graders will bring you more shining and higher precision rice;
5. The pneumatic rice hullers with auto feeding and adjustment on rubber rollers,  higher automation, more easy to operate.
6. Usually use bag type dust collector to collect in high efficiency the dust, impurities, husk and bran during processing, bring you good working environmental; The pulse dust collector is optional;
7. Having high automation degree and realizing continuous automatic operation from paddy feeding to finished rice packing.
8. Having various matching specifications and meeting the requirements of different users.
