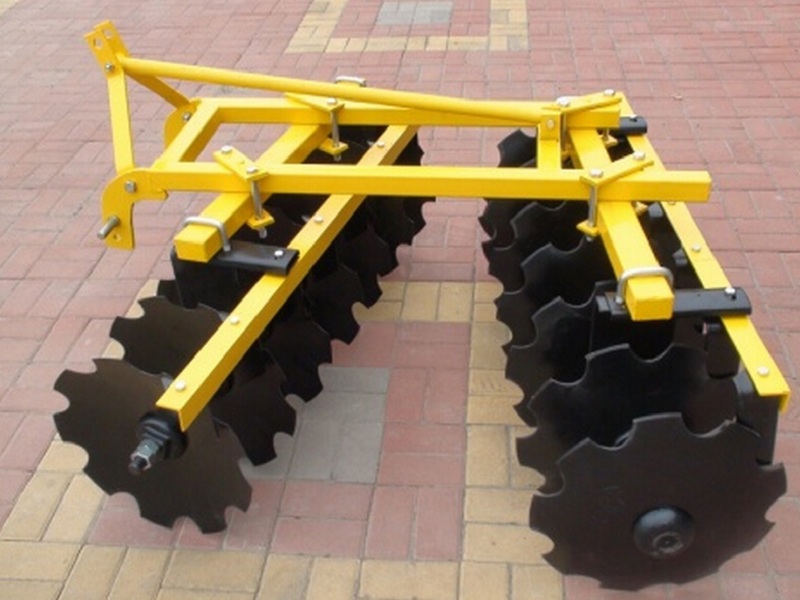

1BJX Series Disc Harrow

Quantity:
  • FOTMA

1BJX series middle-duty disc harrow is suitable for pulverizing and loosening colds after plowing and for planning the land before sowing on cultivated land,it can make soil and fertilizer mix up,and clean away the stubble of plants.the reasonable structure ,the machine is durable in service,easy to be operated and maintained ,and the land surface is smooth.
Model
Unit 1BJX-1.8 1BJX-2.0 1BJX-2.2 1BJX-2.4 1BJX-2.5
Working width M 1.8 2 2.2 2.4 2.5
Working depth Mm 140 140 140 140 140
Q’ty of disc
16 18 20 22 24
Diameter of disc Mm 560 560 560 560 560
Overall weight Kg 390 434 463 604 760
Matched power Hp 45 50 55-65 65-75 80
Linkage Standard Three Point Mounted
