FOTMA

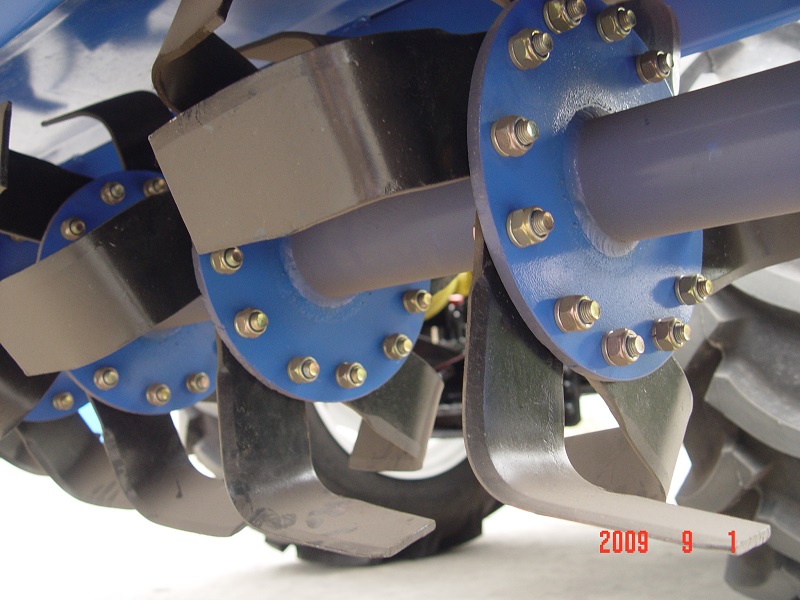

1GN SERIES ROTARY TILLER | ||||||
Model | 1GN90 | 1GN100 | 1GN125 | 1GN135 | 1GN150 | |
Working width(mm) | 900 | 1000 | 1250 | 1350 | 1500 | |
Weight(kg) | 245 | 260 | 285 | 305 | 350 | |
Number of flanges | 5 | 5 | 6 | 6 | 7 | |
Number of blades per flange | 6 (Optional 4) | |||||
Hitch type | Standard three point hitch | |||||
Gearbox lubrication | SAE 90 oil | |||||
Rotor diameter | 18" | |||||
Rotor shaft speed | 209 rpm at 540 rpm PTO | |||||
Recommended maximum PTO power(kw) | 18.4 | 18.4-22.1 | 22.1-29.4 | | ||
Dimentions(LxWxH mm) | 1100x700x800 | 1200X700X800 | 1450X700X800 | 1550X700X800 | 1700X700X800 | |
POWER REQUIRED | 25hp | 25-30hp | 35-45hp | | ||
