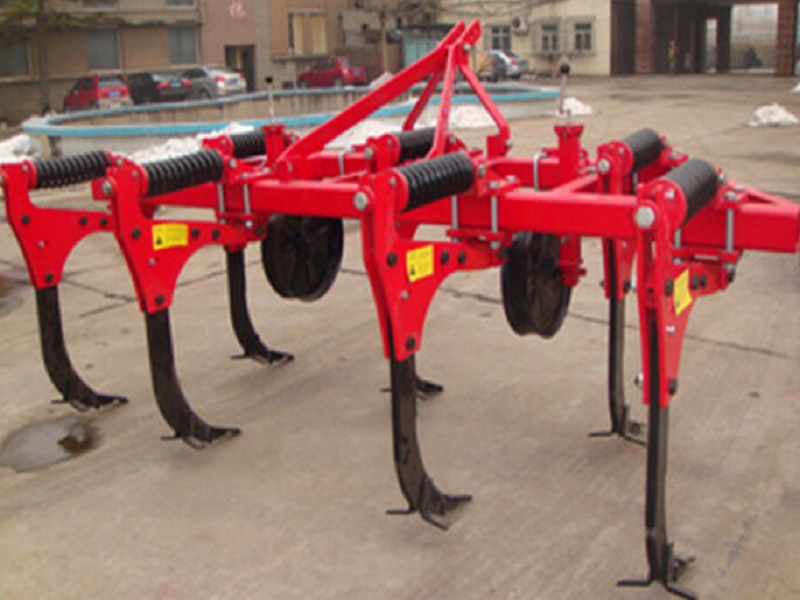

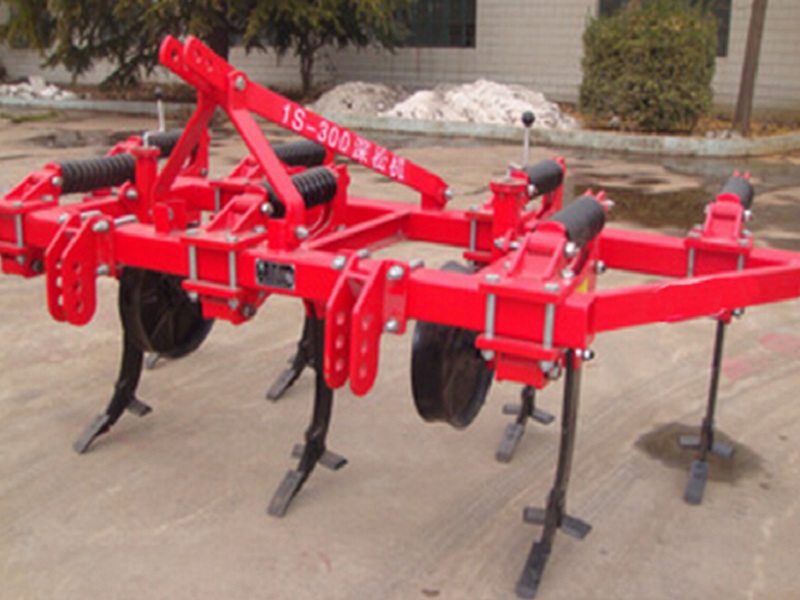

1S-300 Subsoiler

Quantity:
  • FOTMA

Subsoiling as tillage as an important new technology at home and abroad more and more attention, the government is making great efforts to promote. I developed 1S-300 subsoiler, reasonable structure, reliable performance, traction resistance. Rack with frame, easy to adjust working width; shovel column is high, and staggered around, reducing the straw obstruct block, through the good, the working parts of the buffer spring and shear bolt double protection, is subsoiler meet a good model for China's national conditions.
  • Dimensions ( cm )
    165×265×127
    Structural mass ( Kg ) 600
    Motive power ( kW ) four-wheel drive ≥66
    The form of a deep shovel Chisel
    Deep loosening depth (cm) 25-40
    Work to shovel a number 3-7
    Cm spacing 40-60
    Working width (cm) 300
    Operating speed (Km/h) 4-6
    Efficiency (hm2 / h) 1.12-1.86
