The side-loader Foklifts series, the main products made by Fotma Fork Lift Truck Plant, is the unique product with the longest history of production in the material handling industry in China. It is a kind of modern and efficient material handling vehicle for short distance transportation and it is especially suitable to loading/unloading, stacking and transporting in short distance for various kinds of shaped steel, aluminum product, timber, prefabricated cement, etc. So it is widely used at airports, harbors, docks, stations, warehouses, construction sites and timber storage sites.
The side-loader Foklifts series, the main products made by Fotma Fork Lift Truck Plant, is the unique product with the longest history of production in the material handling industry in China. It is a kind of modern and efficient material handling vehicle for short distance transportation and it is especially suitable to loading/unloading, stacking and transporting in short distance for various kinds of shaped steel, aluminum product, timber, prefabricated cement, etc. So it is widely used at airports, harbors, docks, stations, warehouses, construction sites and timber storage sites.
type
CCCD-6C
CCCD-5C
CCCD-10C
Rated lifting weight(cargo stay 0.6m apart from fork wall)
6000kg
5000kg
10000kg
Max lifting height
3.55m
3.55m
3.6m
Fork full free lifting height
0.4m
0.4m
0.4m
Biggest lifting speed(full load)
≥0.3m/s
≥0.3m/s
≥0.25m/s
Travel speed
Forward gear I
10.5km/h
10.5km/h
24km/h
Forward gear II
25.5km/h
25.5km/h
31.8km/h
Reverse gear
10.5km/h
10.5km/h
11.25km/h
Fork tile angle up/down
5°/3°
5°/3°
5°/3°
Min turning radius(outer side)
4.45m
4.55m
5.8m
max traction force
28.4KN
28.4KN
64KN
Gradeability
20%
20%
20%
min clearance (full load)
0.18m
0.18m
Ground clearance
0.22m
Overall size
Length
4.712m
4.712m
6.2m
Width(no rear mirro)
2.065m
2.065m
2.6m
Height
Fork at lowest place
2.80m
2.80m
3.45m
Fork at highest place
4.85m
4.85m
5.23m
Wheel base
2.7m
2.7m
3.7m
treat
1.715m
1.715m
2.2/2.11m
Platform height(full load)
0.99m
0.99m
1.34m
Platform width
1.22m
1.22m
1.76m
Fork length
1.2m
1.2m
1.65m
Fork max space
1.012m
1.012m
1.31m
Battery
6-QA-135 two in serial 24V
6-QA-135 two in serial: 24V
6-QA-135 two in serial 24V
Tyre
9.00-16-14PR
9.00-16-14PR
12.00-20-18PR double tire rear wheel
Operating weight
air pressure: 7.5kg/cm2
air pressure 7.5kg/cm2
15000kg
8300kg
8300kg
Engine
Model
4RMG22 type（R4105G22）
4RMG22Type（R4105G22）
LR6105G6X
rated power（kw/rpm）
58.8/2400
58.8/2400
77.2/2200
Max torque（N.m）
270/1680
270/1680
372/1400
(Specifications)
Unit

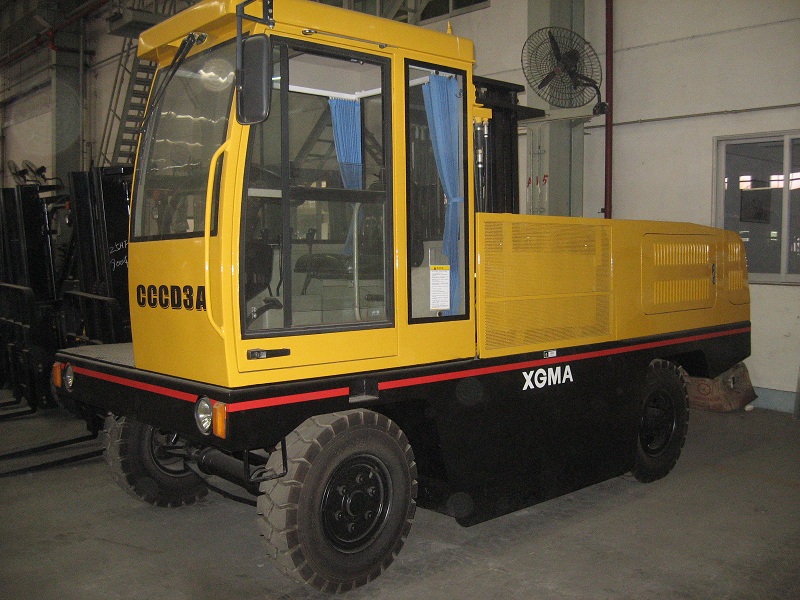

CCCD3A Loader
Rated capacity
Kg
3000
Load center distance
mm
500
Max. Lifting height
mm
3500
Max. Traveling speeds
Km/h
19
Platform tilt-angle
'
3'upward/downward 3'
Forks tilt-angle
'
5'upward/downward 5'
Gradeability
%
15
Wheel base
mm
2550
Track base
mm
1600
Min. ground clearance
mm
170
Min. turning radius
mm
4550
Front / Rear tyres
8.25-15-14PR
Engine
Type
XINCHAI 490BPG
Rated power
KW / r p m
37/2650
Max. torque/ speed
N m/ r p m
145/2000
Fuel consumption rate
g /kw h
238
Adjustable scope of forks
mm
290-1070
Platform height
mm
970
Fork length
mm
1050
Overall dimensions (L*W*H)
mm
4240*2040*2710
Dead weight
kg
5370
