Drilling Manifold/Drilling Fluid Manifold Valve

The gate and valve seat of Z23Y- 5000psi mud valve are welded with carbide against erosion and corrosion, so that it can enlarge the working life, and reduce operating torque .
Quantity:
  • FOTMA

  • A193

  • NBR

  • Steel


Drilling Manifold

Feature of ZJGH100/35 drilling fluid manifold:
  ZJGH100/35 drilling fluid manifold consists of Z23Y 100-5000PSI & Z23Y 50- 5000PSImud valve ,high-pressure spherical unionhigh- -pressure cone union,teehigh-pressure hose, elbow,pressure gauge,and pup joint etc.
The gate and valve seat of Z23Y- 5000psi mud valve are welded with carbide against erosion and corrosion, so that it can enlarge the working life, and reduce operating torque .


Drilling fluid manifold.1

Installation:
1. First clean up each sealing face and sealing groove of union and coat it with grease and get rid of dirt form the pipeline.
2. 2. Check whether each jointer is fastened or not .

Drilling manifold valve.3 Drilling fluid manifold.2


Usage gist & maintenance:
1. Regularly inject mud gate valve with grease to maintain the gate valve ;
2. Regularly check whether all connecting position and fixing bolts are loose ;
3. If leak around sealing position, the seal should be replaced immediately ;
4. Keep the outer surface of the manifold clean and paint it against rust regularly.

Drilling manifold valve.8

Notice:
Z23Y- 5000PSI hard sealing mud gate valve is only used for pipeline opening/closing but for choke valve so as to avoid damage against sealing face .

Drilling fluid manifold valve:

Drilling manifold valve.2

Item Component Qty Material
1 Body 1 A487
2 Body Stud 4 A193
3 O-Ring 1 NBR
4 Seat 1 NBR
5 Gate 1 316
6 Stem 1 316
7 Bonnet 1 A487
8 Body Stud Nut 4 A194
9 Packing 3 NBR
10 Packing Ring 1 Steel
11 Bonnet Stud 2 A193
12 O-Ring 1 NBR
13 Retainer Ring 1 Steel
14 Stem Screw 1 Steel
15 Screw Housing 1 Steel
16 Bonnet Stud Nut 2 A194
17 O-Ring 1 NBR
18 Hub 1 Steel
19 Stem Protector 1 Ductile Iron
20 Handle 3 Steel
21 Key 1 Steel

Product show:

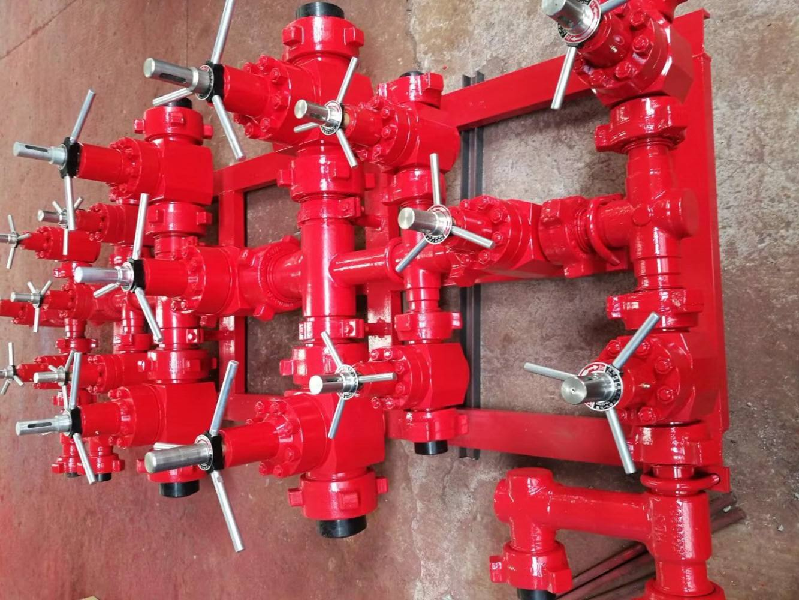

Drilling manifold valve

Drilling manifold valve
