FM Pneumatic Plunger Spraying Machine

It is compared with other models in the industry, the price is more than 30% cheaper and compressed air power is stable and reliable, and the failure rate is extremely low.

Quantity:



Inquire Add to Basket

Model:
FM2539/FM2549/FM2569/FM1437
Brand:
FOTMA
Model:
FM2539/FM2549/FM2569/FM1437
Inlet pressure (Mpa):
0.3-0.6

Product Description

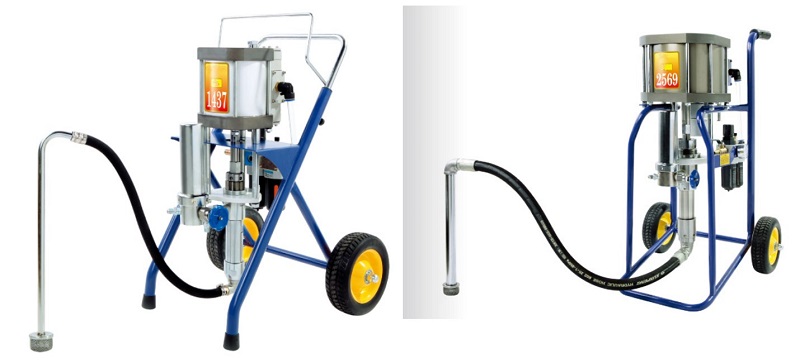

FM Pneumatic Plunger Spraying Machine

Product advantages:
Compared with other models in the industry, the price is more than 30% cheaper.

  Compressed air power is stable and reliable, and the failure rate is extremely low.

  The pressure pulse is small, the coating film is uniform, and the coating quality is better.

  Long stroke, large displacement, low phantom frequency, not easy to wear, and extended service life and maintenance cycle of the whole machine.

  Use a new type of silencer.

Trolley type, compact structure and easy to move.

The process characteristics of the high-pressure non-spraying machine are higher than the general spraying production efficiency, the paint layer is tightly attached, and it can spray various primers, oil paints, enamel paints, internal and external wall latex paints and other water-based paints under 100 seconds (No. 4 Ford Cup) . It is suitable for spraying color tiles, latex paint for interior and exterior walls of buildings, furniture, steel structure, chemical equipment, leather factory spraying glue, automobiles, and trailers.

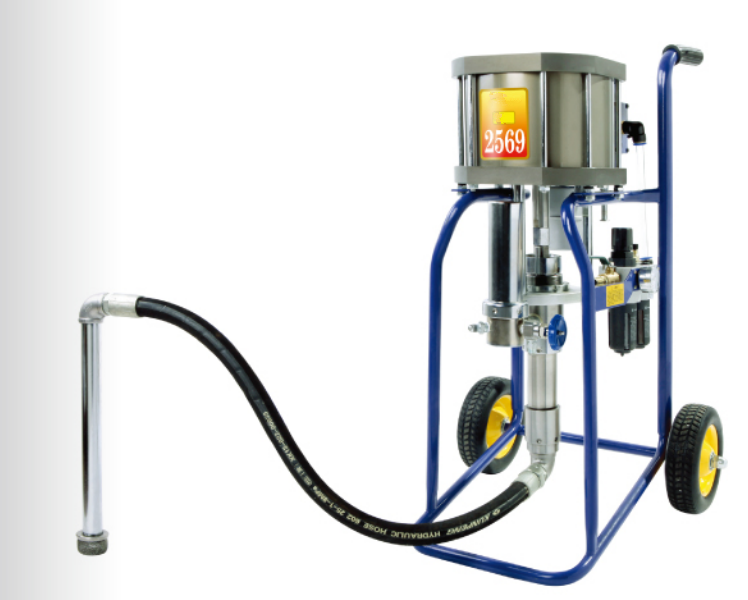

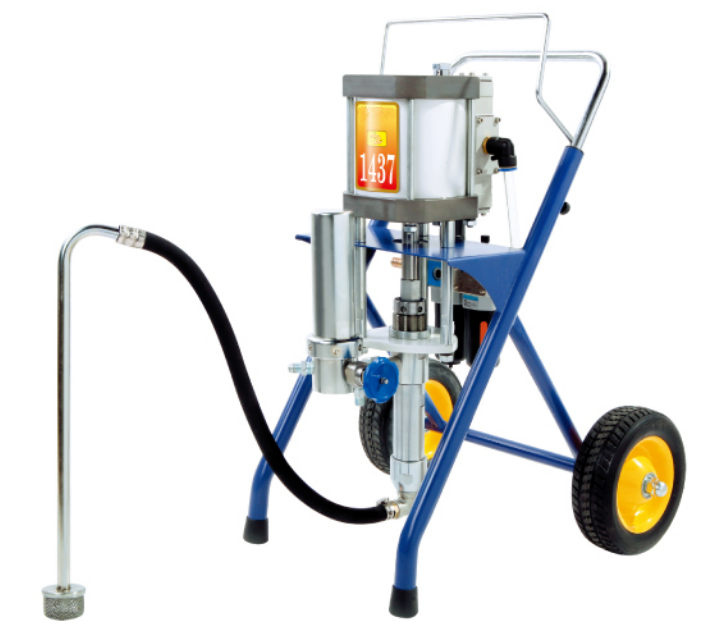

Model	FM2539	FM2549	FM2569	FM1437
Pressure ratio	39:1	49:1	69:1	37:1
No-load displacement (L/min)	35	33	30	15
Inlet pressure (Mpa)	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6
Air consumption (L/min)	100-1000	100-1000	100-1000	300-800
Weight (KGS)	70	65	60	30
Cylinder diameter (mm)	φ250	Φ250	φ250	Φ140
Length X width x height (mm)	长X宽x高(mm)	520x580x960	520x580x960	480x480x800
