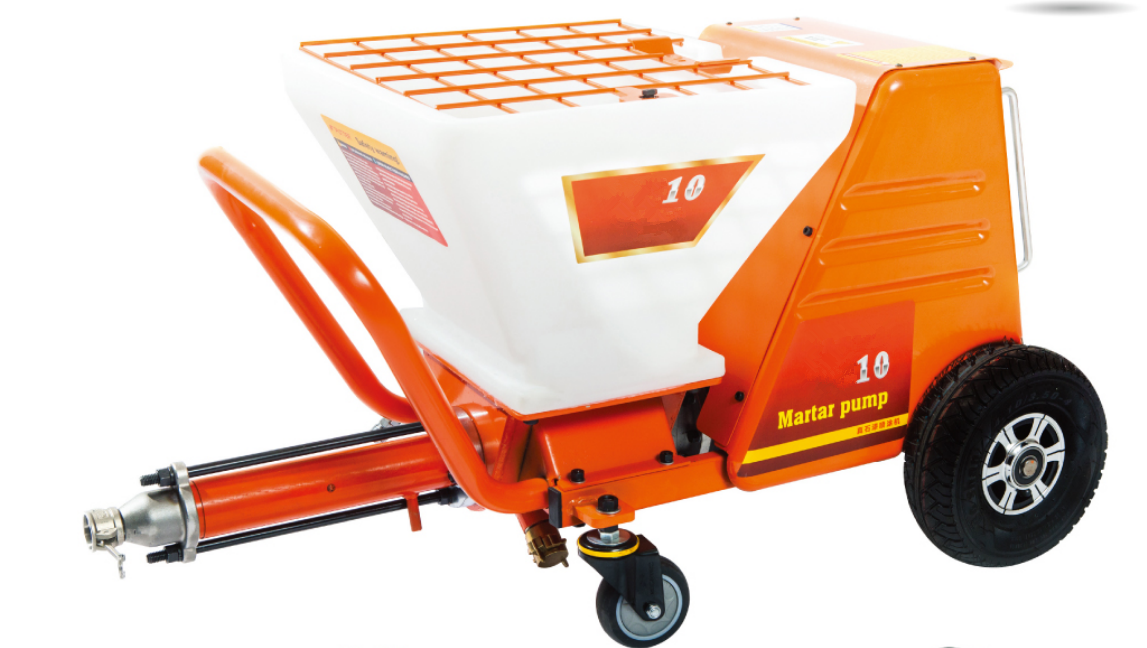

FM10 Real Stone Paint Spraying Machine

It is suitable for the secondary pouring construction of urban construction projects, roads, railway tunnels, urban subways, underground caverns of hydropower stations, etc.

Quantity:



Inquire Add to Basket

Model:
FM10
Brand:
FOTMA
Model:
FM10
Power:
2.8kw
Dimensions:
1150mmx460mmx550mm

Product Description

FM10 Real Stone Paint Spraying Machine

Adapted paint:
Real stone paint, putty, dispersible paint, lime-based paint, primer, liquid wall paint, colorful paint, interface agent, fireproof paint, internal and external wall latex paint, grouting, water-based paint, fine spraying, silicate and inorganic ash The particle size of mud (slurry) shall not be larger than 4mm, primer paint, corrugated wall agent, mud and other more materials.

Scope of application:
It is suitable for the secondary pouring construction of urban construction projects, roads, railway tunnels, urban subways, underground caverns of hydropower stations, etc. anchoring grouting, consolidation grouting and backfilling grouting projects: it can also be used for slopes, pile lifting when soft rock is hardened Grouting engineering and so on.

Model	FM10
Voltage	220V50Hz
Power	2.8kw
Transport flow	14L/min
Delivery pressure	30bar
Delivery distance	60m
Conveying height	30m
Maximum particle size	4mm
Hopper capacity	50L
Way to control	Electronic brushless additional air control
Total Weight	58kg
Dimensions	1150mmx460mmx550mm
Whole machine configuration	1 set of real stone paint host 1 5m discharge pipe/5m 1 trachea 1 spray gun/4 nozzles/1 stirring cage 2 cleaning balls/instructions/certificates/warranty cards, etc.
