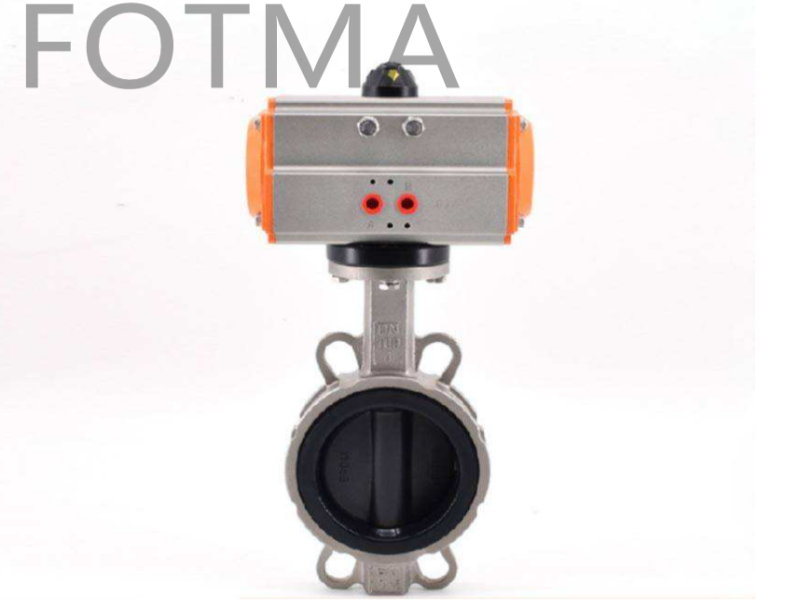

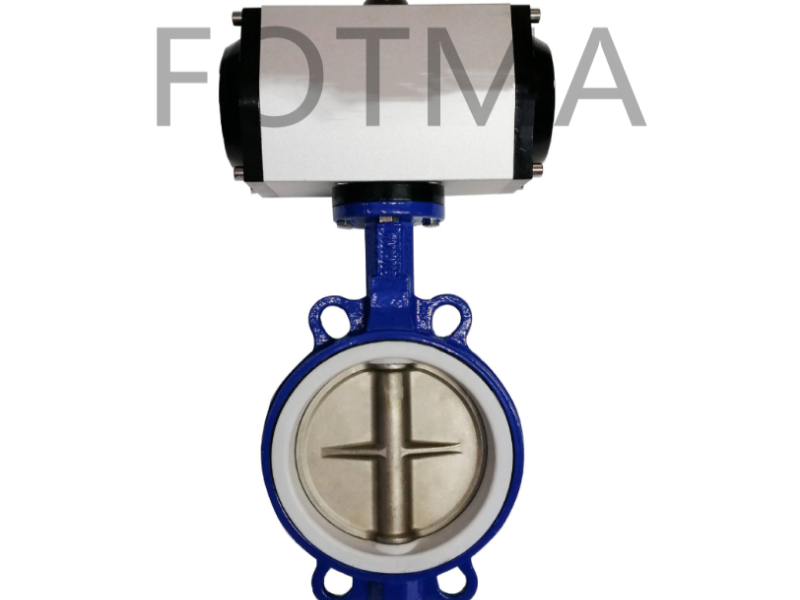

FM600-D1 Series Pneumatic Soft Sealed Butt Clamp Butterfly Valves

Tongue and groove seat design, not easy to deform, zero leakage
Quantity:
  • FM600-D1 Series
  • FOTMA
  • DN15~500mm
  • W1:-20~80℃ W2:-20~150℃
  • Butt Clamp
FM600-D1 Series Pneumatic Soft Sealed Butt Clamp Butterfly Valves

Basic Description

Nominal DiameterDN50~500mm

1.Tongue and groove seat design, not easy to deform, zero leakage

2.Double flat precision bite structure, prevent corrosion, easy to disassemble

3.Compliant with ISO5211 standard high platform design, long life

4.Two-way sealing, two-way pressure bearing, small opening and closing torque, good circulation

5.Lightweight structure, convenient installation, economical and applicable, and widely used
Technical Parameter
DN DN15~500mm(Other port size, please indicate when ordering)
Nominal Pressure 1.0-1.6Mpa ( lf need other standard、please indicate when ordering )
Body Material Ductile Iron(Q)、Carbon Steel(C)、Stainless 304(P)
Seal Material NBR(X1)、NR(X2)、EPDM(X3)、FPM(X4)
Media Temperature W1:-20~80℃  W2:-20~150℃
Connection Mode Butt Clamp
Pneumatic Actuatcr FMAT Series、FMAW Series、JLGT Series、lmport actuator series
Interaction Way Double action、Single acting normally closed、Single acting normally open


Notes:  Other special sealing material or special temperature can choose by customer's design.

Installation Size
PNEUMATIC OVERALL MEASUREMENT CHART-PN10、16(10、16bar)


PNEUMATIC OVERALL MEASUREMENT CHART-PN10 16(10 16bar)
DN Outline Size Connection Size 1.0/1.6 Actuator Model
L H H1 L1 L2 H2 D D1 D2 N-D
40 33 147 53 159/172 73/85 73/90 80 110 68 4-16 FMATD52/ FMATE63
50 42 195 55 159/172 73/85 73/90 95 125 82 4-16 FMATD52/ FMATE63
65 44 217 64 172/215 85/105 90/110 114 145 97 4-16 FMATD63/ FMATE83
80 44 232 73 185/265 95/110 100/120 126 160 113 8-18 FMATD75/ FMATE92
100 50 270 88 215/270 105/125 110/142 154 180 139 8-18 FMATD83/ FMATE105
125 56 292 102 265/270 110/125 120/142 180 210 163 8-18 FMATD92/ FMATE105
150 56 318 115 270/310 125/142 142/158 206 240 195 8-20 FMATD105/ FMATE125
200 60 390 149 310/400 142/160 158/178 264 295 250 8-20/12-20 FMATD125/ FMATE140
250 68 457 184 400/465 160/178 178/200 320 350/355 305 12-20/12-24 FMATD140/ FMATE160
300 78 518 207 465/550 178/210 200/235 370 400/410 352 12-20/12-24 FMATD160/ FMATE190
350 78 610 247 550/550 210/235 235/260 430 460/470 405 16-20/16-24 FMATD190/ FMATE210
400 102 650 275 550/646 235/258 260/325 480 515/525 455 16-24/16-27 FMATD210/ FMATE240
450 114 713 307 646/722 258/292 325/350 550 565/585 515 20-24/20-27 FMATD240/ FMATE270
500 127 768 330 646/722 258/292 325/350 590 620/650 565 20-24/20-30 FMATD240/ FMATE270
600 151 919 400 722/1630 292/375 350/326 695 725/770 674 20-27/20-33 FMATD270/ FMATE25

According to different torques, different air source pressures and different actual working conditions, select the corresponding actuator and its relevant external dimensions also change.

Model Description

Model Denotation Mode

FM Company Brand

-600 Pneumatic

-D1 Mid Line Soft Seal Butterfly Valve
-C7 Butt Clamp

-X3 EPDM

-16 Nominal Pressure

-Q Ductile Iron

-200 Nominal Diameter

-D1 Double Action

- Anti-explosion Class

-W1 -20~80℃

-B2 2 Bits 5 Way Solenoid Valve
-B6 Limit Switch


FM600-D1 Series Pneumatic Soft Sealed Butt Clamp Butterfly Valves
Product Usage
  FM600-D1 pneumatic butterfly valve can be used to control various types of water, air, steam, natural gas, food, medicine, oil and various corrosive media, mud, liquid metal and radioactive media with a working temperature of -10 degrees to 150 degrees. fluid flow. It mainly plays the role of cutting and throttling on the pipeline. The butterfly valve opening and closing part is a disc-shaped butterfly plate, which rotates around its own axis in the valve body to achieve the purpose of opening and closing or adjustment. It is suitable for requirements to achieve complete sealing, zero leakage of gas test, and high life expectancy.
