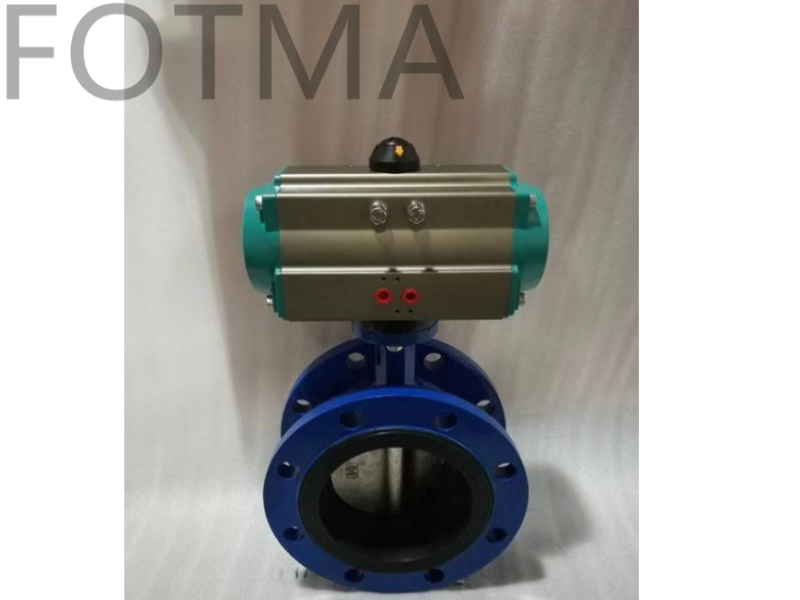

FM600-D1 Series
FOTMA
DN15~500mm
1.0-1.6Mpa
Flange
Technical Parameter | |
DN | DN15~500mm(Other port size, please indicate when ordering) |
Nominal Pressure | 1.0-1.6Mpa ( lf need other standard、please indicate when ordering ) |
Body Material | Ductile Iron(Q)、Carbon Steel(C)、Stainless 304(P) |
Seal Material | NBR(X1)、NR(X2)、EPDM(X3)、FPM(X4) |
Media Temperature | W1:-20~80℃ W2:-20~150℃ |
Connection Mode | Flange |
Pneumatic Actuatcr | FMAT Series、FMAW Series、JLGT Series、lmport actuator series |
Interaction Way | Double action、Single acting normally closed、Single acting normally open |
DN | Outline Size | Connection Size1.0/1.6 | Actuator Model | |||||||
L | H | H1 | L1 | L2 | H2 | D | D1 | N-D | | |
50 | 108 | 200 | 80 | 159/172 | 73/85 | 73/90 | 165 | 125 | 4-18 | FMATD52/ FMATE63 |
65 | 112 | 219 | 89 | 172/215 | 85/105 | 90/110 | 185 | 145 | 4-18 | FMATD63/ FMATE83 |
80 | 114 | 240 | 95 | 185265 | 95/110 | 100/120 | 200 | 160 | 8-18 | FMATD75/ FMATE92 |
100 | 127 | 270 | 114 | 215/270 | 105/125 | 110/142 | 220 | 180 | 8-18 | FMATD83/ FMATE105 |
125 | 140 | 295 | 125 | 265/310 | 110/142 | 120/158 | 250 | 210 | 8-18 | FMATD92/ FMATE125 |
150 | 140 | 330 | 142 | 270/310 | 125/142 | 142/158 | 285 | 240 | 8-22 | FMATD105/ FMATE125 |
200 | 152 | 375 | 170 | 310/400 | 142/160 | 158/178 | 340 | 295 | 8-22/12-22 | FMATD125/ FMATE140 |
250 | 165 | 433 | 198 | 400/465 | 160/178 | 178/200 | 395/405 | 350 | 12-22/12-26 | FMATD140/ FMATE160 |
300 | 178 | 503 | 223 | 465/550 | 178/210 | 200/235 | 445/460 | 400/410 | 12-22/12-26 | FMATD160/ FMATE190 |
350 | 190 | 590 | 260 | 550/550 | 210/235 | 235/260 | 505/520 | 460/470 | 16-22/16-26 | FMATD190/ FMATE210 |
400 | 216 | 660 | 290 | 550/646 | 235/258 | 260/325 | 565/580 | 515/525 | 16-26/16-30 | FMATD210/ FMATE240 |
450 | 222 | 720 | 320 | 646/722 | 258/292 | 325/350 | 615/640 | 565/585 | 20-16/20-30 | FMATD240/ FMATE270 |
500 | 229 | 900 | 400 | 646/722 | 646/292 | 646/350 | 670/715 | 620/650 | 20-26/20-33 | FMATD240/FMATE270 |
600 | 267 | 1027 | 457 | 1495/1630 | 350/375 | 326/326 | 780/840 | 725/770 | 20-30/20-36 | FMAWD20/FMAWE25 |
FM | Company Brand |
-600 | Pneumatic |
-D1 | Mid Line Soft Seal Butterfly Valve |
-C4 | Flange |
-X3 | EPDM |
-16 | Nominal Pressure |
-Q | Ductile Iron |
-200 | Nominal Diameter |
-D1 | Double Action |
- | Anti-explosion Class |
-W1 | -20~80℃ |
-B2 | 2 Bits 5 Way Solenoid Valve |
-B6 | Limit Switch |
