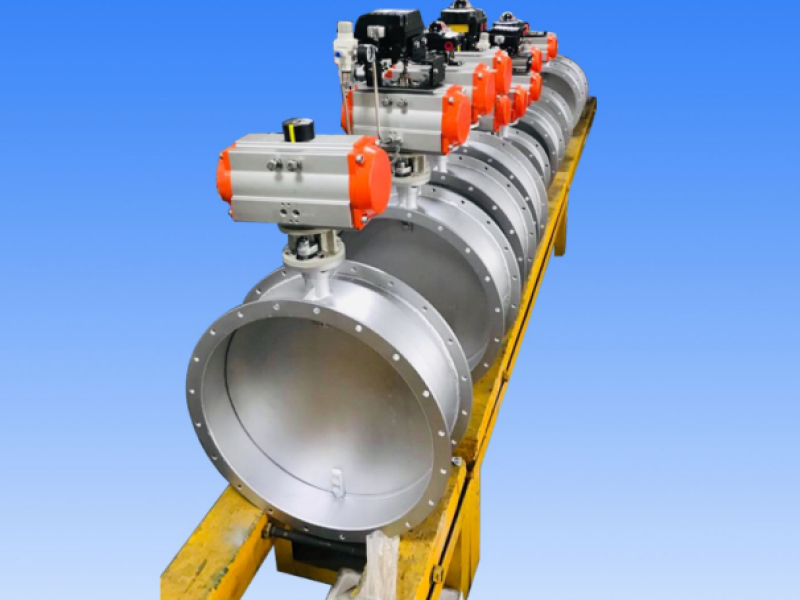

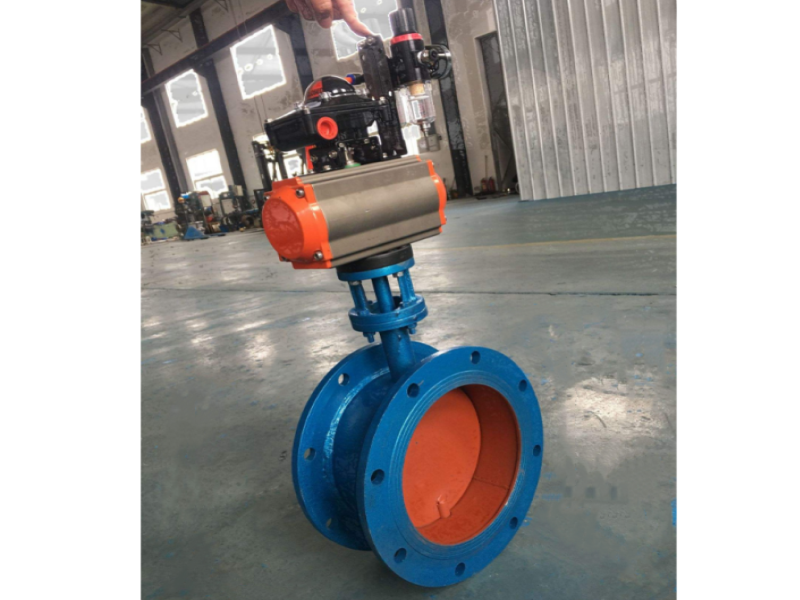

FM600-D5 Series Pneumatic Ventilation Butterfly Valves

Safe and reliable, economical, large flow, avoid high temperature expansion.
Quantity:
  • FM600-D5 Series
  • FOTMA
  • DN100~2200mm
  • 0.1-0.6Mpa
  • Block ring(W)
FM600-D5 Series Pneumatic Ventilation Butterfly Valves

Basic Description
Nominal Diameter DN100~2200mm

  Safe and reliable, economical, large flow, avoid high temperature expansion.

  Two-way flow, ultra-high temperature resistance, easy operation, long life.

  Compact structure, light weight, small flow resistance, arbitrary installation.

  Widely used in ventilation and environmental protection engineering gas pipelines in chemical, building materials, power stations, glass and other industries.


Technical Parameters

Technical Parameter
DN DN100~2200mm(Other port size, please indicate when ordering)
Nominal Pressure 0.1-0.6Mpa ( lf need other standardplease indicate when ordering )
Body Material Carbon Steel(C), Stainless 304(P), Stainless 316(R)
Seal Material Block ring(W)
Media Temperature W3:-20~250℃  W4:-29~425℃ W5:-29~650℃
Connection Mode Butt Clamp, Flange
Pneumatic Actuatcr FMAT Series, FMAW Series, lmport actuator series
Interaction Way Double actionSingle acting normally closedSingle acting normally open

Notes: Other special sealing material or special temperature can choose by customer's design.

Installation Size



FM600-D5 Series Pneumatic Ventilation Butterfly Valves

FM600-D5 Series Pneumatic Ventilation Butterfly Valves

PNEUMATIC OVERALL MEASUREMENT CHART- PN1.0/2.5 (1.0/2.5bar)


DN Outline Size and Connection Size Actuator Model
L L1 L2 H1 H2 D D1 N-D
65 112 172/185 85/95 282 90/100 160 130 4-14 FMATD634FMATE75
80 114 172/185 85/95 313 90/100 190 150 4-18 FMATD634FMATE75
100 127 172/185 85/95 380 90/100 210 170 4-18 FMATD63FMATE75
125 140 185/215 95/105 396 100/110 240 200 8-18 FMATD751FMATE83
150 140 185215 95/105 409 100/110 265 225 8-18 FMATD75FMATE83
200 152 215/265 105/110 619 110/120 320 280 8-18 FMATD83FMATE92
250 165 265/270 110/125 649 120/142 375 335 12-18 FMATD92/FMATE105
300 180 270/310 125/142 881 142/158 440 395 12-22 FMATD105/FMATE125
350 100 270/310 125/142 709 142/158 490 445 12-22 FMATD105/FMATE125
400 200 310/400 142/160 733 158/178 540 495 16-22 FMATD125/FMATE140
450 200 310/400 142/160 761 158/178 595 550 16-22 FMATD125/FMATE140
500 220 400/465 160/178 789 178/200 645 600 20-22 FMATD140/FMATE160
600 220 465/550 178/210 856 200/235 755 705 20-26 FMATD160/FMATE190
700 240 465/550 178/210 908 200/235 880 810 24-26 FMATD160/FMATE190
800 240 550/550 210/235 965 235/260 975 920 24-30 FMATD190/FMATE210
900 260 550/550 210/235 1051 235/260 1075 1020 24-30 FMATD190/FMATE210
1000 260 550/646 235/258 1102 260/325 1175 1120 28-30 FMATD210/FMATE240
1200 280 646/722 258/292 1236 325/350 1375 1320 32-30 FMATD240/FMATE270
1400 300 722/782 292/336 1888 350/380 1575 1520 36-30 FMATD270/FMATE300
1600 320 722/782 292/336 1915 350/380 1790 1730 40-30 FMATD270/FMATE300
1800 340 . - 2025 . 1990 1930 44-30 -
2000 360 . - 2125 . 2190 2130 48-30 -


According to different torques, different air source pressures and different actual working conditions, select the corresponding actuator and its relevant external dimensions also change.
FM600-D5 Series Pneumatic Ventilation Butterfly Valves

Model Description

Model Denotation Mode

FM Company Brand

-600 Pneumatic

-D5 Ventilation Butterfly Valve
-C4 Flange

-W Baffle ring

-1 Nominal Pressure

-P Stainless 304

-800 DN

-E2 Single Action Normally Close Regulation Type

-B Exd Ⅱ BT4
-W5 -29~650℃

-B3 2 Bits 3 Way Anti-explosion Solenoid Valve
-B7 Anti-explosion Limit Switch

FM600-D5 Series Pneumatic Ventilation Butterfly Valves

Product Usage
  The structure of FM600-D5 pneumatic ventilation butterfly valve is designed and manufactured by a new structural form of welding between the centerline disc plate and the short-structure steel plate. It is compact in structure, light in weight, easy to install, small in flow resistance, and large in flow, avoiding the influence of high temperature expansion and easy to operate. ; No connecting rods, bolts, etc., reliable work, long service life. The valve is a kind of non-sealed butterfly valve, which is widely used in the dusty cold air or hot air gas pipelines of ventilation and environmental protection projects in the industries of building materials, chemical industry, metallurgy, mining, glass, power station and electric power. on the pipeline with a nominal pressure of 0.1Mpa, it is used to connect, open and close or adjust the amount of medium.
