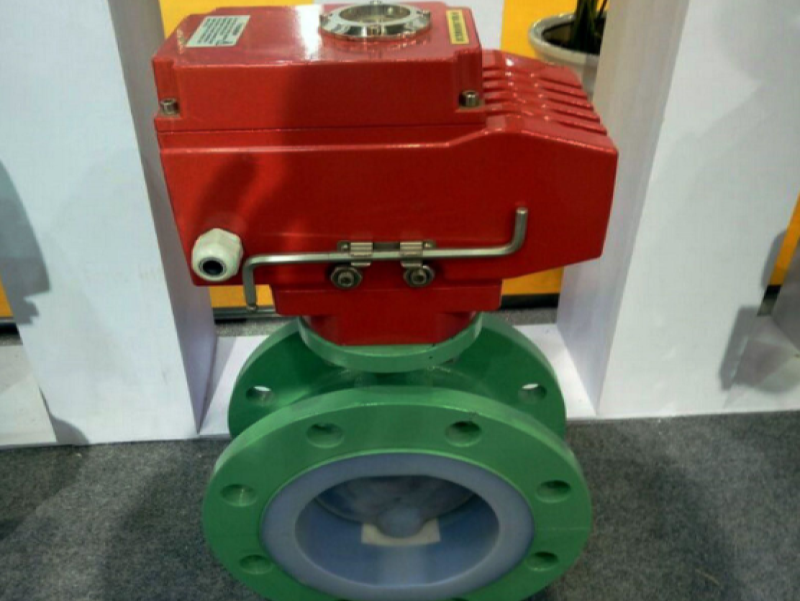

FM600-D6 Series Pneumatic Fully Fluorine-lined Flanged Butterfly Valves

Fully lined lining, strong corrosion resistance, aging resistance, wear resistance.
Quantity:
  • FM600-D6 Series

  • FOTMA

  • DN40~600mm

  • 1.0-1.6Mpa

  • PTFE(F)

FM600-D6 Series Pneumatic Fully Fluorine-lined Flanged Butterfly Valves

Basic Description
Nominal Diameter DN40~600mm

  Fully lined lining, strong corrosion resistance, aging resistance, wear resistance.

  Dovetail groove structure, uniform perforation of valve parts, strong adhesion and long service life.

  Compression molding, chemical stability, not easy to fall off, good anti-fouling and anti-sticking.

  Smooth inner wall, low resistance, high CV value, strong fluidity, zero leakage.

  Small size, light weight, safe and stable, light operation, easy to install.


Technical Parameters

Technical Parameter
DN DN40~600mm(Other port size, please indicate when ordering)
Nominal Pressure 1.0-1.6Mpa ( lf need other standardplease indicate when ordering )
Body Material Ductile Iron(Q)Carbon Steel(C)Stainless 304(P)
Seal Material PTFE(F)
Media Temperature W2:-20~150℃
Connection Mode Flange
Lined Material Teflon FEP(F46), PFA
Pneumatic Actuatcr FMAT SeriesFMAW Serieslmport actuator series
Interaction Way Double actionSingle acting normally closedSingle acting normally open

Notes:  Other special sealing material or special temperature can choose by customer's design.

Installation Size
FM600-D6 Series Pneumatic Fully Fluorine-lined Flanged Butterfly Valves

                                     FM600-D6 Series Pneumatic Fully Fluorine-lined Flanged Butterfly Valves

PNEUMATIC OVERALL MEASUREMENT CHART- PN16 (16bar)

DN Outline Size Connection Size1.6

Actuator Model
L L1 L2 H1 H2 D D1 N-D
40 106 215 105 165 110 150 110 4-18 FMATD83/ FMATE83
50 108 215 105 165 110 165 125 4-18 FMATD83/ FMATE83
65 112 215 105 175 110 185 145 8-18 FMATD83/ FMATE83
80 114 215/265 105/110 195 110/120 200 160 8-18 FMATD83/ FMATE92
100 127 265/270 110/125 210 120/142 220 180 8-18 FMATD92/ FMATE105
125 140 270/310 125/142 235 142/158 250 210 8-18 FMATD105/ FMATE125
150 140 310/400 142/160 260 158/178 285 240 8-22 FMATD125/ FMATE140
200 152 400/465 160/178 310 178/200 340 295 12-22 FMATD140/ FMATE160
250 165 465/550 178/210 360 200/235 405 355 12-26 FMATD160/ FMATE190
300 178 550/550 210/235 395 235/260 460 410 12-26 FMATD190/ FMATE210
350 190 550/646 235/258 420 260/325 520 470 16-26 FMATD210/ FMATE240

According to different torques, different air source pressures and different actual working conditions, select the corresponding actuator and its relevant external dimensions also change.

FM600-D6 Series Pneumatic Fully Fluorine-lined Flanged Butterfly Valves

Model Description

Model Denotation Mode

FM Company Brand

-600 Pneumatic

-D6 Full Fluorine Lined Butterfly Valve
-C4 Flange

-F46 Full Lined FEP

-16 Nominal Pressure

-P Stainless 304

-200 Nominal Diameter

-E1 Single Action Normal Close

-B Exd Ⅱ BT4
-W2 -20~150℃
-B4 2 Bits 5 Way Explosions Proof Solenoid Valve
-B7 Explosion Proof Limit Switch


FM600-D6 Series Pneumatic Fully Fluorine-lined Flanged Butterfly Valves

Product Usage

  FM600-D6 pneumatic fluorine-lined butterfly valve is mainly used in pipelines with various concentrations of strong alkali organic solvents and other corrosive gases and liquid media. And it is suitable for conveying pipelines of various concentrations of aqua regia, sulfuric acid, hydrochloric acid, hydrofluoric acid and various organic acids, strong acids and strong oxidants at temperatures of -50°C to 150°C, and is widely used in food, environmental protection, light industry, petroleum, In the automatic adjustment and remote control system of papermaking, chemical industry, light textile, electric power and other industries.
