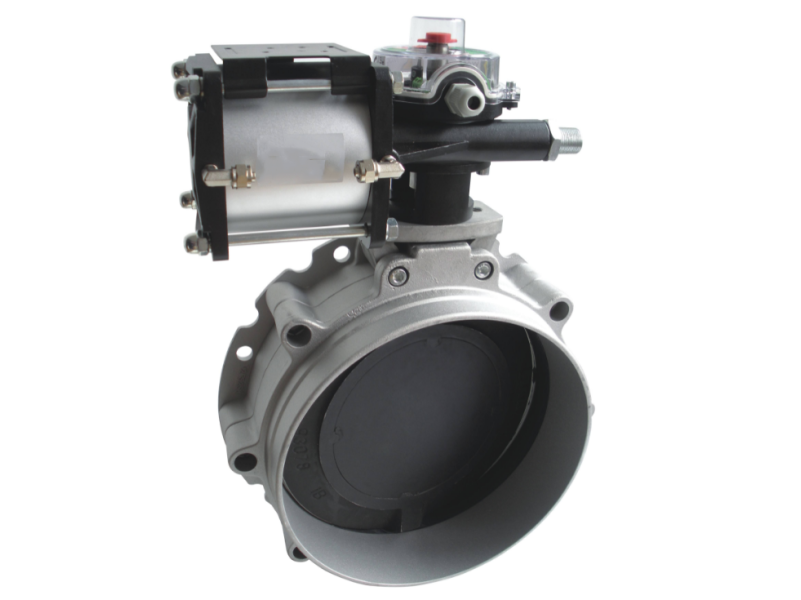

FM600-D8 Series Pneumatic Powder Particle Butterfly Valves
Basic Description
Nominal Diameter：DN100~400mm
Affordable, lightweight and beautiful, zero leakage.
Flexible opening, stable work, easy disassembly and assembly.
Good circulation, small starting torque, labor saving and energy saving.
Strong compressive ability, two-way pressure bearing, small opening and closing torque.
Technical Parameters
|
| DN | DN100~400mm |
| Nominal Pressure | 0.4Mpa ( lf need other standard、please indicate when ordering ) |
| Body Material | AL Alloy(L) |
| Seal Material | NBR(X1) |
| Media Temperature | W1:-20~80℃ |
| Connection Mode | Single Flange, Double Flange |
| Pneumatic Actuator | FMAT Series, FMAW Series, Import Actuator Series |
| Interaction Way | Double Action, Single Action Normally Closed, Single Action Normally Open |
Installation Size
FM 600F1 DOUBLE FLANGE POWDER PARTICLE VALVE
OUTLINE SIZE | Model | Dia.A | Dia.B | Dia.C | Dia.D | E | F | G | Dia.H | Dia.H*QTY | Dia.P*QTY | Dia.R | S | T | U | V | Z | KG |
| FM600F1-100 | 95 | 180 | 220 | - | 250 | 115 | 35 | 22*19 | 14*4 | 20*4 | 220 | - | 80 | M12 | 50 | M10 | 4 |
| FM60OF1-150 | 150 | 200 | 228 | - | 290 | 115 | 35 | 22*19 | 14*4 | 20*4 | 228 | - | 80 | M12 | 50 | M10 | 5 |
| FM600F1-200 | 200 | 250 | 278 | - | 340 | 115 | 35 | 22*19 | 14*4 | 20*4 | 278 | - | 80 | M12 | 50 | M10 | 6.5 |
| FM600F1-250 | 250 | 300 | 328 | - | 390 | 115 | 35 | 22*19 | 14*8 | 20*8 | 328 | - | 80 | M12 | 50 | M10 | 7.5 |
| FM600F1-300 | 300 | 350 | 378 | - | 440 | 115 | 35 | 22*19 | 14*8 | 20*16 | 378 | - | 80 | M12 | 50 | M10 | 9 |
| FM6O0F1-350 | 350 | 400 | 440 | - | 530 | 123 | 50 | 28*25 | 14*8 | 20*8 | 440 | - | 80 | M12 | - | M10 | 16 |
| FM60OF1-400 | 400 | 470 | 530 | - | 580 | 123 | 50 | 28*25 | 14*8 | 20*16 | 530 | - | 80 | M12 | - | M10 | 20.5 |
Model Description
Model Denotation Mode
| FM | Company Brand
|
| -600 | Pneumatic |
| -D8 | Powder Butterfly Valve |
| -C4 | Flange
|
| -X1 | NBR
|
| -1 | Nominal Pressure
|
| -L | AL Alloy
|
| -300 | Nominal Diameter
|
| -D1 | Double Action
|
| - | Anti-explosion Class
|
| -W1 | -20~80℃
|
| -B6 | Limit Switch |
| - | Attachment Selection
|
Product Usage
FM600-D8 pneumatic powder butterfly valve is an industrial product specially developed for powder and granular materials. The valve body is made of lightweight high-pressure cast aluminum alloy, the disc is a wear-resistant polymer material lined with a steel core, and the soft seal formed with the wear-resistant rubber sealing ring makes it very suitable for all kinds of powder and granular materials applications, especially for highly abrasive materials. In powder and granular material handling systems that require gravity blanking or pneumatic conveying, butterfly valves are often installed on hoppers, silos, screw conveyor outlets and air delivery pipelines.
