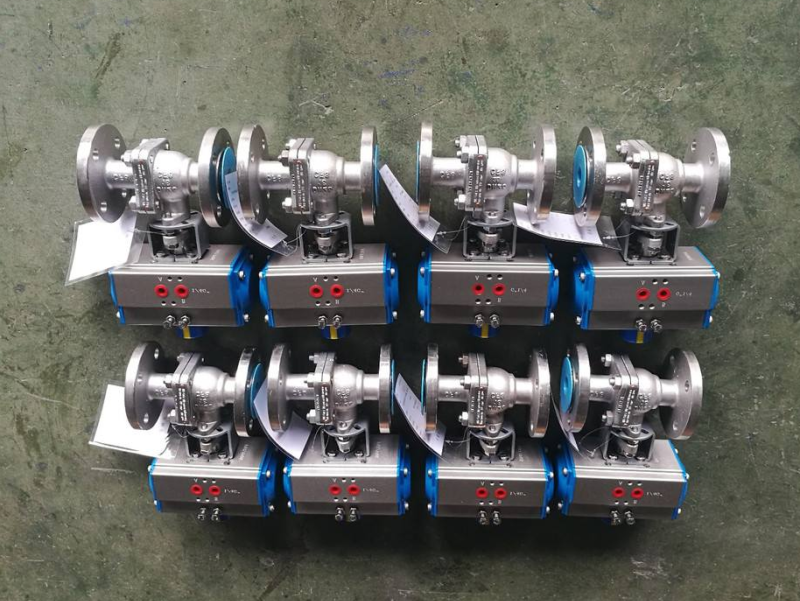

FM600-J1 Series Pneumatic Flanged Cut Off Valves

Frictionless opening and closing, low torque design, convenient disassembly and assembly, safe and reliable.
Quantity:
  • FM600-J1 Series
  • FOTMA
  • DN15~300mm
  • 1.6-6.4Mpa
  • Metal Hard Sealed(H)
FM600-J1 Series Pneumatic Flanged Cut Off Valves

Basic Description
Nominal DiameterDN15~300mm

  Frictionless opening and closing, low torque design, convenient disassembly and assembly, safe and reliable.

  Wedge-shaped sealing structure, good sealing, self-cleaning function, wide application.

  High temperature resistance, high pressure resistance, corrosion resistance, wear resistance, automatic compensation function.

  Top-loading structure, single valve seat design, good sealing, long service life.


Technical Parameters

Technical Parameter

DN DN15~300mm(Please indicate if need the other ordering)
Nominal Pressure 1.6-6.4Mpa ( lf need other standardplease indicate when ordering )
Body Material Carbon Steel(C), Stainless 304(P), Stainless 316(R)
Seal Material Metal Hard Sealed(H)
Media Temperature W4:-29~425℃
Connection Mode Flange, Butt Welding
Pneumatic Actuator Pneumatic Actuator Series
Interaction Way Double Action, Single Action Normally Closed, Single Acting Normally Open

NotesOther special seal material or special interface can be designed as customer requirement.

Installation Size

                  FM600-J1 Series Pneumatic Flanged Cut Off Valves


FM600-J1 Series Pneumatic Flanged Cut Off Valves

PNEUMATIC OVERALL MEASUREMENT CHART-PN16 (16bar)

DN Outine Dimension Connection Dimension
L D D1 D2 T f N-D
15 130 95 65 46 14 2 4-14
20 150 105 75 56 16 2 4-14
25 160 115 85 65 16 2 4-14
32 180 140 100 76 18 2 4-18
40 200 150 110 4 18 3 4-18
50 230 165 125 99 20 3 4-18
65 290 185 145 118 20 3 4-18
80 310 200 160 132 20 3 8-18
100 350 220 180 156 22 3 8-18
125 400 250 210 184 22 3 8-18
150 480 285 240 211 24 3 8-22
200 600 340 295 266 24 3 12-22
250 730 405 355 319 26 3 12-26
300 850 460 410 370 28 4 12-26


FM600-J1 Series Pneumatic Flanged Cut Off Valves

Model Description

Mode l Denotation Mode

FM Company Brand

-600 Pneumatic
-J1 Cut Off Valve
-C4 Flange

-H Metal Hard Sealing

-16 Nominal Pressure

-P Stainless 304

-50 Nominal Diameter

-E3 Single Action Normally Open

- Anti-explosion Class

-W4 -29~425℃

- Attachment Selection

- Attachment Selection



FM600-J1 Series Pneumatic Flanged Cut Off Valves

Product Usage

  The opening and closing part of the FM600-J1 pneumatic globe valve is a plug-shaped valve disc, the top of the seal is a plane or a sea cone surface, and the valve disc moves linearly along the center line of the valve seat. The movement form of the valve stem, (common name: dark rod), also has a lifting and rotating rod type, which can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media. Globe valves can be used in most media process systems. Various forms of globe valves have been developed to meet various uses in petrochemical, electric power, metallurgy, urban construction, chemical and other sectors.
