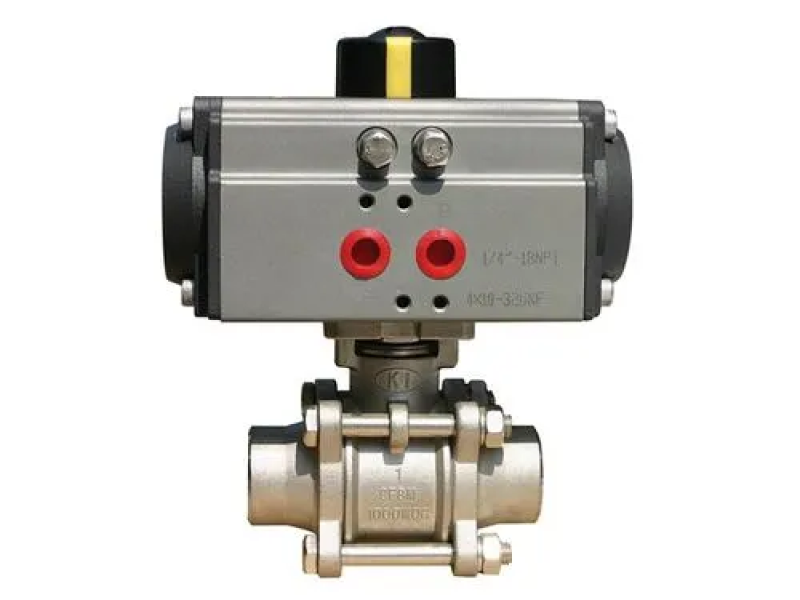

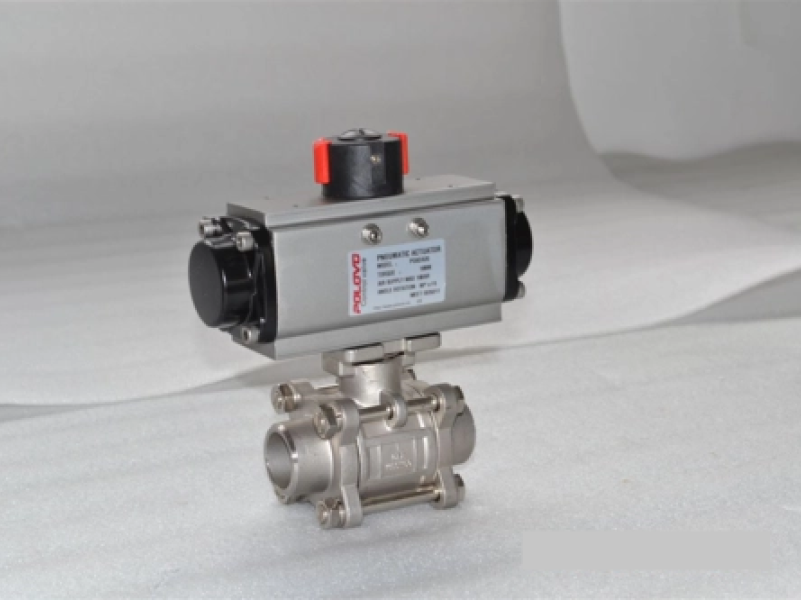

FM600-Q1 Series Pneumatic Three-piece Ball Valves

High platform structure, ISO5211 connection standard, convenient installation.
Quantity:
  • FM600-Q1 Series

  • FOTMA

  • DN10~100mm

  • 1.6-6.4Mpa

  • PTFE(F)、PPL ( PPL)

FM600-Q1 Series Pneumatic Three-piece Ball Valves

Basic Description
Nominal Diameter DN10~100mm

  Easy structure, remove convenient.

  Small opening &closing moment, high reliability and long service life.

  High platform structure, ISO5211 connection standard, convenient installation.

  Bidirectional sealing, bidirectional pressure bearing, automatic compensation, self cleaning.

  Fire-proof, static proof structure, apply with the standard of AP1607, GB/T6899 etc.

  Available for fiber and small particle of suspension or viscous media.


Technical Parameters

Technical Parameter
DN DN10~100mm
Nominal Pressure 1.6-6.4Mpa ( lf need other standardplease indicate when ordering )
Body Material Stainless 304(P)Stainless 316(R)
Seal Material PTFE(F)PPL ( PPL)
Media Temperature W2:-20~150℃  W3:-20~250℃
Connection Mode Female threadFlangeClampButt weldingSocket welding
Pneumatic Actuatcr FMAT seriesFMAW serieslmport actuator series
Interaction Way Double actionSingle acting normally closedSingle acting normally open

Remark: 1. Valve body uses cast or forge process with three-chip mode, two-chip mode; Thread mode with BSPT thread, G thread, NPT thread.

               2. Other special sealing material or special temperature can choose by customer's design.


Installation Size
FM600-Q1 Series Pneumatic Three-piece Ball Valves
PNEUMATIC OVERALL MEASUREMENT CHART-PN 16~64 (16~64 bar)

DN in Outine Measurement Actuator Model
d L L1 L2 H1 H2
15 1/2" 15 75 158/172 73/85 72 73/90 FMATD52/FMATE63
20 3/4" 20 80 158/185 73/95 82 73/100 FMATD52/FMATE75
25 1" 25 90 172/215 85/105 90 90/110 FMATD63/FMATE83
32 11/4" 32 110 185/285 95/110 95 100/120 FMATD75/FMATE92
40 11/2" 38 120 215/270 105/125 105 110/142 FMATD83/FMATE105
50 2" 50 140 215/270 105/125 113 110/142 FMATD83/FMATE105
65 21/2" 63.5 185 270/310 125/142 149 142/158 FMATD105/FMATE125
80 3" 76 205 270/310 125/142 159 142/158 FMATD105/FMATE125
100 4" 100 225 310/465 142/178 165 158/200 FMATD125/FMATE160

According to different torques, different air source pressures and different actual working conditions, select the corresponding actuator and its relevant external dimensions also change.

FM600-Q1 Series Pneumatic Three-piece Ball Valves

Model Description

Model Denotation Mode

FM Company Brand

-600 Pneumatic

-Q1 Two Way Valve

-C1 Female Thread

-F PTFE

-16 Nominal Pressure

-P Stainless 304

-25 Nominal Diameter

-T1 Overall Switchtype
- Anti-explosion Class
-W2 -20~150℃

- Attachment Select
- Attachment Select


FM600-Q1 Series Pneumatic Three-piece Ball Valves


Product Usage
  Pneumatic three-piece internal thread, clamp, welded ball valve is an important actuator in industrial automation control system, which can be controlled remotely and can meet the needs of computer program control; now in petrochemical, gas equipment, nuclear industry, power equipment, environmental protection It is widely used in water treatment, HVAC, iron and steel metallurgy, industrial kilns, canning equipment, brewing equipment, drying equipment, vacuum equipment, surface treatment, biopharmaceuticals, food machinery, textile printing and dyeing, papermaking and other industries. The first choice for construction and scientific and technological construction.
