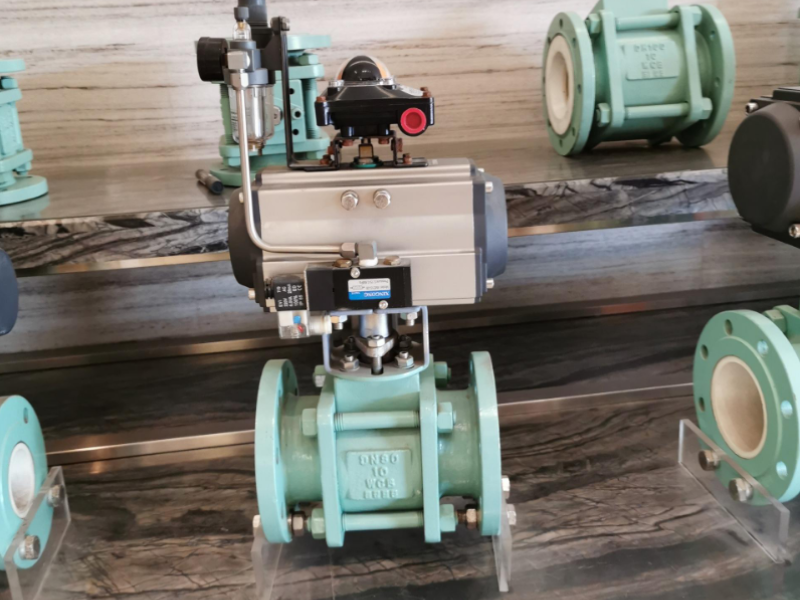

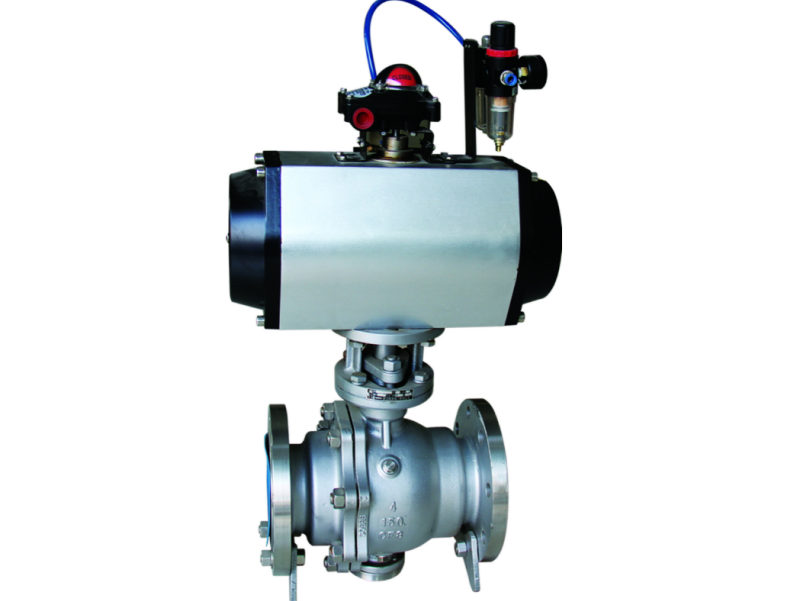

FM600-Q4 Series Pneumatic Fixed Ball Valves

Fireproof and anti-static structure, silica sol precision casting, safe and reliable.
Quantity:
  • FM600-Q4 Series
  • FOTMA
  • DN50~500mm
  • 1.6~42Mpa
  • Carbon Steel(C), Stainless 304(P), Stainless316(R)
FM600-Q4 Series Pneumatic Fixed Ball Valves

Basic Description
Nominal Diameter DN50~500mm

  Full-bore fixed spool design, fast response, zero leakage.

  Fireproof and anti-static structure, silica sol precision casting, safe and reliable.

  Compliant with ISO5211 standard high platform design, long service life.

  Two-way sealing, two-way pressure bearing, automatic compensation, self-cleaning function.

  Suitable for fibrous, particle-containing and high-viscosity media.


Technical Parameters

Technical Parameter
DN DN50~500mm
Nominal Pressure 1.6~42Mpa ( lf need other standardplease indicate when ordering )
Body Material Carbon Steel(C), Stainless 304(P), Stainless316(R)
Seal Material PTFE(F), PPL(PPL), Metal Hard Sealed(H), Hard Alloy(Y)
Media Temperature W2:-20~150℃  W3:-20~250℃ W4:-29~425℃
Connection Mode Flange, Butt Welding
Pneumatic Actuator FMAT Series, FMAW Series, lmport Actuator Series
Interaction Way Double ActionSingle Action Normally ClosedSingle Action Normally Open

Notes: 1. The fixed ball valve body can be cast or forged, and the forms are divided into floating type, fixed type and top-loading type; the seal is divided into soft seal and hard seal, the pressure resistance is up to 2500 pounds, and the temperature resistance is as low as -196°C Up to 570°C.

          2. Other special sealing material or special temperature can choose by customer's design.


Installation Size
FM600-Q4 Series Pneumatic Fixed Ball Valves


                                FM600-Q4 Series Pneumatic Fixed Ball Valves


PNEUMATIC OVERALL MEASUREMENT CHART-PN16 (16bar)


DN Outline Size Connection Size Actuator Model
L Ll L2 D D1 D2 C f N-D
50 203 215/270 105/125 165 125 102 18 2 4-18 FMATD83/FMATE105
65 222 270/310 125/142 185 145 122 18 2 8-18 FMATD105/FMATE125
80 241 270/310 125/142 200 160 138 20 2 8-18 FMATD105/FMATE125
100 305 310/465 142/178 220 180 158 20 2 8-18 FMATD125/FMATE160
125 356 465/550 178/210 250 210 188 22 2 8-18 FMATD160/FMATE190
150 394 550/550 210/235 285 240 212 22 2 8-22 FMATD190/FMATE210
200 457 550/646 235/258 340 295 268 24 2 12-22 FMATD210/FMATE240
250 533 646/722 258/292 405 355 320 26 2 12-26 FMATD240FMATE270
300 610 - - 460 410 378 28 2 12-26 -
350 686 - - 520 470 438 30 2 16-26 -
400 762 - - 580 525 490 32 2 16-30 -
450 864 - - 640 585 550 40 2 20-30 -

According to different torques, different air source pressures and different actual working conditions, select the corresponding actuator and its relevant external dimensions also change.

FM600-Q4 Series Pneumatic Fixed Ball Valves

Model Description
Model Denotation Mode

FM Company Brand

-600 Pneumatic

-Q4 Fixed Type Ball Valve
-C4
Flanged End

-F PTFE
-16 Nominal Pressure

-p Stainless 304
-200 Nominal Diameter

-D1 Double Action
-B Exd Ⅱ BT4
-W2 -20~150
-B4 2 Bits 5 Way Anti-explosion Valve
-B7 Anti-explosion Limit Switch
FM600-Q4 Series Pneumatic Fixed Ball Valves

Product Usage

  When the FM600-Q4 pneumatic fixed ball valve is working, the force generated by the fluid pressure in front of the valve on the ball is all transmitted to the bearing, which will not move the ball to the valve seat, so the valve seat will not bear excessive pressure, so the rotation of the fixed ball valve Small torque, small valve seat deformation, stable sealing performance and long service life, suitable for high pressure and large diameter occasions, such as Class150~Class1500, PN16~PN100, JIS 10K~JIS 20K various pipelines, applicable temperature: -196 350, used to cut off or connect the medium in the pipeline, different materials are used to transport water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, etc. It is widely used in petroleum refining, long-distance pipeline, chemical industry, papermaking, pharmaceutical, water conservancy, electric power, municipal administration, steel and other fields.
