Main Features: 1. Adopt YTO diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency; 2. Double-function clutch, operate independently, high transmission capacity, effective and reliable, comfortable operation; 3. Gearbox using 4 × (4+2) engaging sleeve, shuttle-type gearshift , there are 16 forward gears, 8reverse gears, reasonable match between the gears, and have high efficiency; 4. Independent power take off device, smooth transmission, large capacity; 5. Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy; 6. Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good; 7. Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned; 8. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio; 9. New streamlined appearance, generous, modern, fashion;
<template class="visibility">Main Features: 1. Adopt YTO diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency; 2. Double-function clutch, operate independently, high transmission capacity, effective and reliable, comfortable operation; 3. Gearbox using 4 × (4+2) engaging sleeve, shuttle-type gearshift , there are 16 forward gears, 8reverse gears, reasonable match between the gears, and have high efficiency; 4. Independent power take off device, smooth transmission, large capacity; 5. Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy; 6. Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good; 7. Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned; 8. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio; 9. New streamlined appearance, generous, modern, fashion; </template>

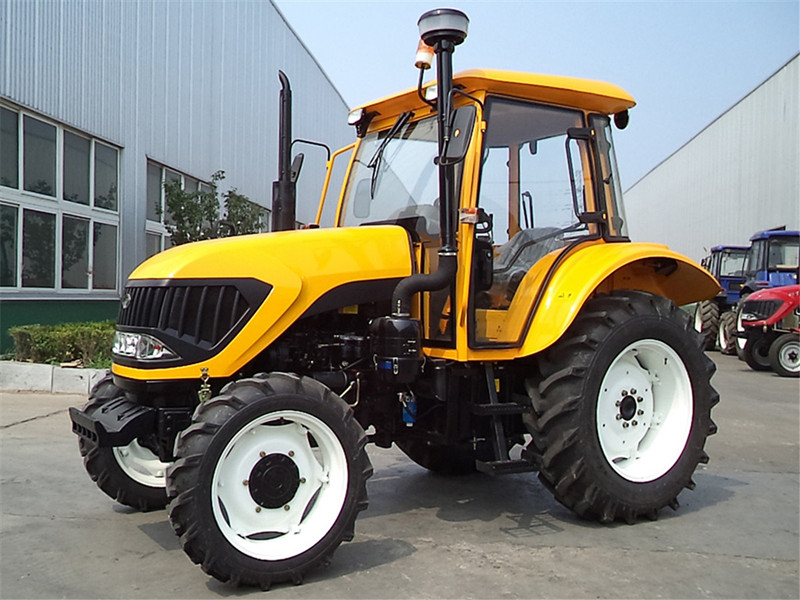

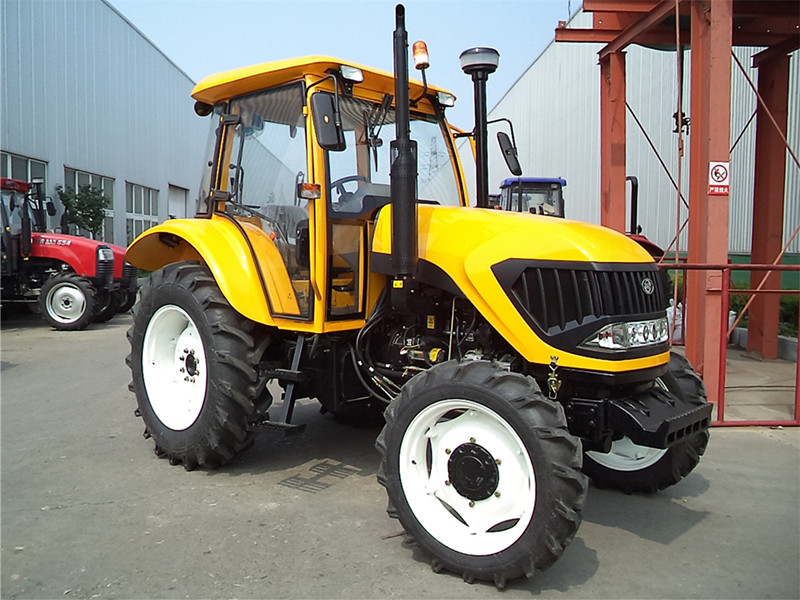

Tractor Model
FM754
FM804
FM854
FM904
FM1004
FM1004B
FM1104
Drive Type
4×4
Overall Dimension L×W×H(mm)
4396×2038×2810
4650×2038×2970
Wheel base(mm)
2195
2449
Front wheel tread(mm)
1610
Rear wheel tread(mm)
1620-2020
Min. ground clearance(mm)
379
Min. steering radius
Unilateral brake(m)
4.2±0.3
4.8±0.2
Not unilateral brake(m)
4.9±0.3
5.5±0.2
Min. operating weight (KG)
4090
4249
Gearbox gears number
16F+8R
Speed
Forward(Kw/h)
1.58-33.69
Reverse(Kw/h)
2.41-34.67
Engine
Model
YT4B4
LR4B5-23
LR4B5-23
LR4M5-23
LR4V5-23
LR6A3-23
LR6B3-23
Rated power (Kw)
55.1
59
62.5
66.2
73.5
73.5
81
Rated speed (r/min)
2300
Tires spec.
Front tires
12.4-24
14.9-24
Rear tires
16.9-34
16.9-34
Steering Type
Full hydraulic front wheels steering
Max. lifting force( KN )
13.2
14.2
15
15.9
17.7
17.7
19.5
PTO
Type
Rear-mounted, Independent type
Speed (r/min)
760/1000 or 540/1000 or 540/760 or 760/850
Power(Kw)
44.5
51.2
53.1
56.3
62.5
62.5
68.9
Control type of ploughing depth
Height control & flotation control
Max. traction force (KN)
17.4
18.6
19.7
21.3
23.2
24
25.7
Front / rear Ballast (KG)
270/470
Notice: As our products will be improved continuously , all above parameters are subject to modification without notice.
