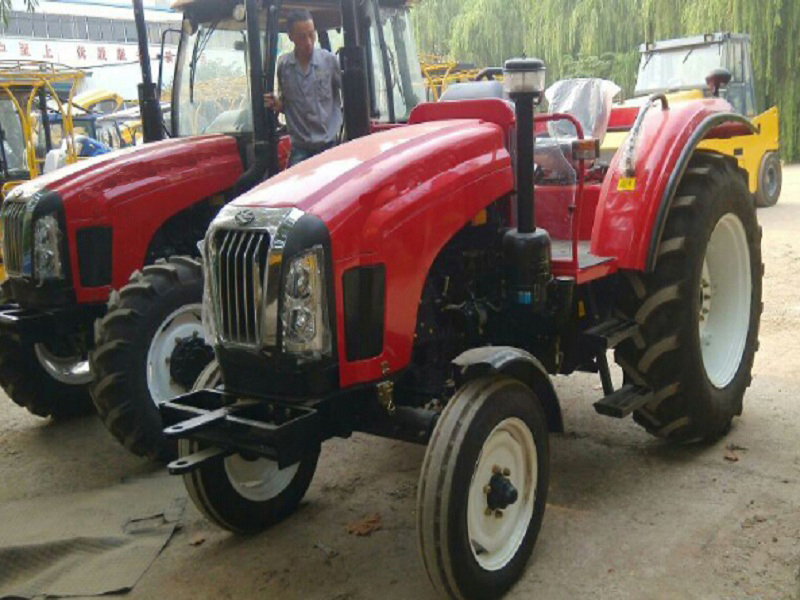

Fotma FM950 Tractor

Main Features:
1. Adopt YTO diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;
2. Double-function clutch, operate independently, high transmission capacity, effective and reliable, comfortable operation;
3. Gearbox using 4 × (4+2)  engaging sleeve, shuttle-type gearshift  , there are 16 forward gears, 8reverse gears, reasonable match between the gears, and have high efficiency;
4. Independent power take off device, smooth transmission, large capacity;
5. Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy;
6. Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good;
7. Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned;
8. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;
9. New streamlined appearance, generous, modern, fashion;
Tractor Model FM800 FM850 FM900 FM950 FM1000 FM1100
Drive Type 4×2
Overall Dimension  L×W×H(mm) 4080×2038×2810 4334×2038×2925
Wheel base(mm) 2195 2449
Front wheel tread(mm) 1385-1685
Rear wheel tread(mm) 1620-2020
Min. ground clearance(mm) 470
Min.  steering radius Unilateral brake(m) 3.6±0.2 3.8±0.2
Not unilateral brake(m) 4.0±0.2 4.3±0.2
Min. operating weight (KG) 3770 3790
Gearbox  gears number 16F+8R
Speed Forward(Kw/h) 1.58-33.69
Reverse(Kw/h) 2.41-34.67
Engine Model LR4B5-23 LR4B5-23 LR4M5-23 LR4M5-23 LR4V5-23 LR6B3-23
Rated power (Kw) 59 62.5 66.2 70 73.5 81
Rated speed (r/min) 2300
Tires spec. Front tires 6.5-20
Rear tires 16.9-34
Steering Type Full hydraulic  front wheels steering
Max. lifting force( KN ) 14.2 15 15.9 16.8 17.7 19.5
PTO Type Rear-mounted, Independent type
Speed (r/min) 760/1000 or 540/1000 or 540/760 or 760/850
Power(Kw) 51.2 53.1 56.3 59.5 62.5 68.9
Control type of ploughing depth Height control & flotation control
Max. traction force (KN) 15.5 16.3 17.7 18.7 19.3 21.6
Front / rear Ballast (KG) 270/470
Notice: As our products will be improved continuously, all above parameters are subject to modification without notice.
