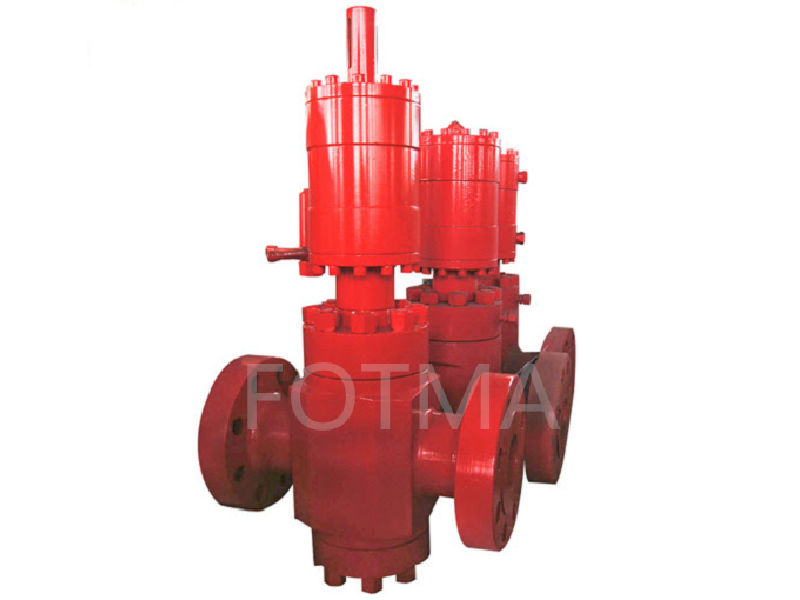

Gate Valve--Hydraulic Plate Valve

It works smoothly, easy to operate, widely used in automatic control systems and remote control.

Quantity:



Inquire Add to Basket

Brand:
FOTMA
Body Material:
4130
O-Ring Material:
410
Screw Material:
Standard

Product Description

Hydraulic plate valve:

Main specifications and technical parameters:

Rated pressure: 2000psi- 1 5000psi

Nominal size:1^13/16’’thru4^1/16’’

Working temperature: PU

PR:1&2

PSL: 1 thru 3

MC: AA thru FF

OP: 107 thru 1 500psi

Item	Component	Qty	Material	Code
1	Body	1	4130	SH- -VPY-xx-xx-01
2	Gate	1	4130	SH- -VPY-xx-xx-02
3	Seat	2	4130	SH- -VPY-xx-xx-03
4	Wave Spring	2	410	SH- -VPY-xx-xx-04
5	O-Ring	4	NBR	SH- -VPY-xx-xx-05
6	Bonnet Stud	8	4130	SH- -VPY-xx-xx-06
7	Stem	1	410	SH- -VPY-xx-xx-07
8	Bonnet	1	4130	SH- -VPY-xx-xx-08
9	Packing Gland	1	4130	SH- -VPY-xx-xx-09
10	Screw	20	Standard	SH- -VPY-xx-xx-10
11	Lower Gland	1	4130	SH- -VPY-xx-xx-11
12	O-Ring	2	NBR	SH- -VPY-xx-xx-12
13	O-Ring	2	NBR	SH- -VPY-xx-xx-13
14	Cylinder	1	4130	SH- -VPY-xx-xx-14
15	Piston	1	4130	SH- -VPY-xx-xx-15
16	Lock Nut	1	5140	SH- -VPY-xx-xx-16
17	Upper Gland	1	4130	SH- -VPY-xx-xx-17
18	Indicator Rod	1	410	SH- -VPY-xx-xx-18
19	Stem Protector	1	1035	SH- -VPY-xx-xx-19
20	O-Ring	2	NBR	SH- -VPY-xx-xx-20
21	O-Ring	2	NBR	SH- -VPY-xx-xx-21
22	O-Ring	2	NBR	SH- -VPY-xx-xx-22
23	O-Ring	2	NBR	SH- -VPY-xx-xx-23
24	Plug	2	1045	SH- -VPY-xx-xx-24
25	Bonnet Nut	8	5140	SH- -VPY-xx-xx-25
26	Packing Ring	2	410	SH- -VPY-xx-xx-26
27	Stem Lip Packing	5	NBR	SH- -VPY-xx-xx-27
28	Grease Fitting	1	Assembly	SH- -VPY-xx-xx-28
