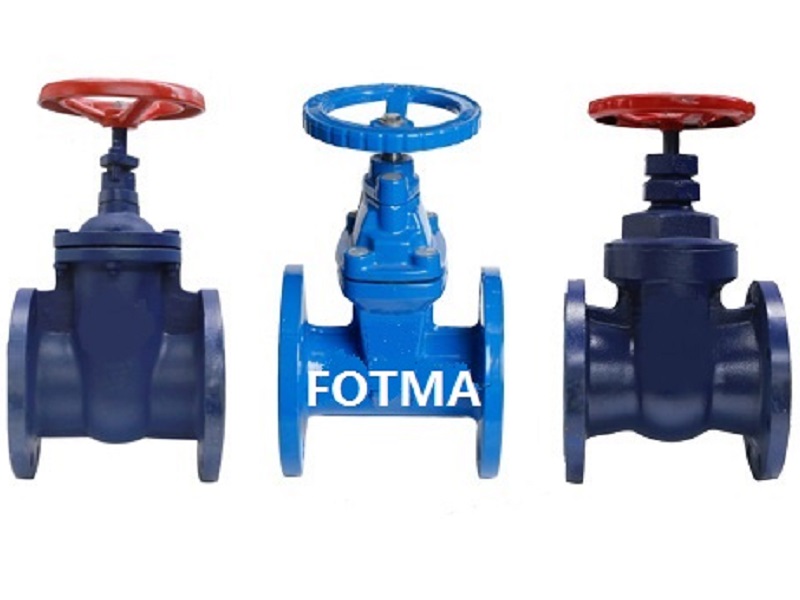

Gate Valve--Non-Rising Stem Slab Gate Valve

Non-rising stem slab gate valves are available in temperature classes L,P,R,S,T, and U specified in API 6A.

Quantity:


Inquire Add to Basket

Brand:
FOTMA
Gate Material:
4130
Packing Material:
NBR
Screw Material:
Standard

Product Description

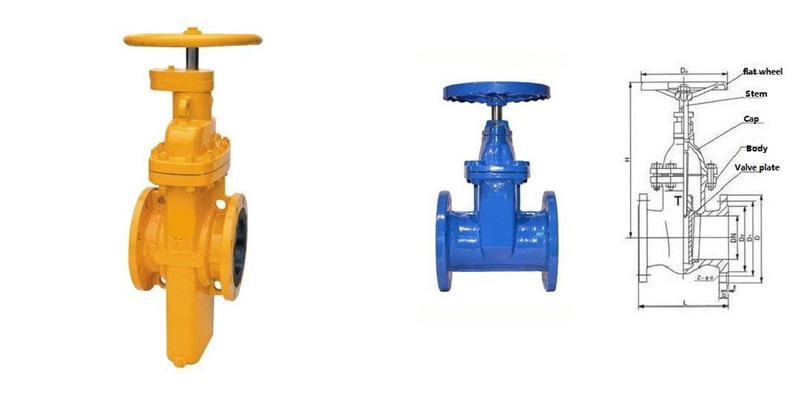

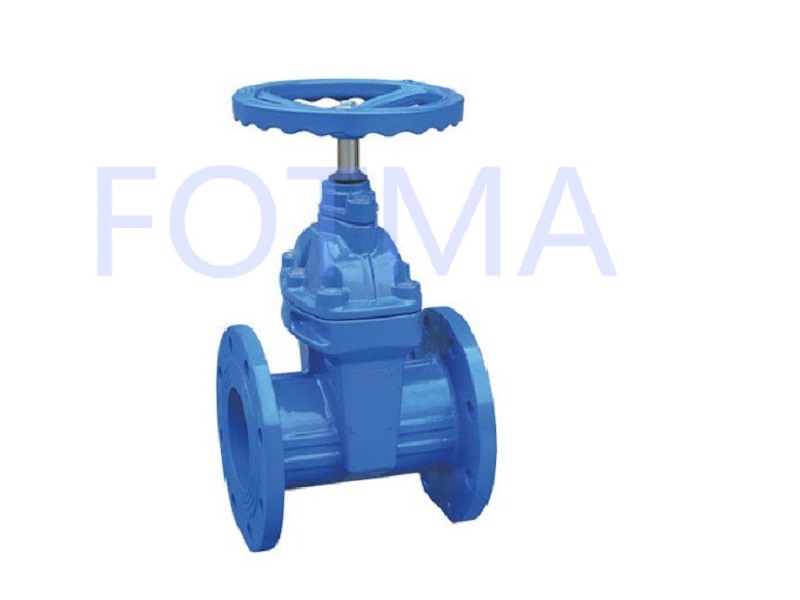

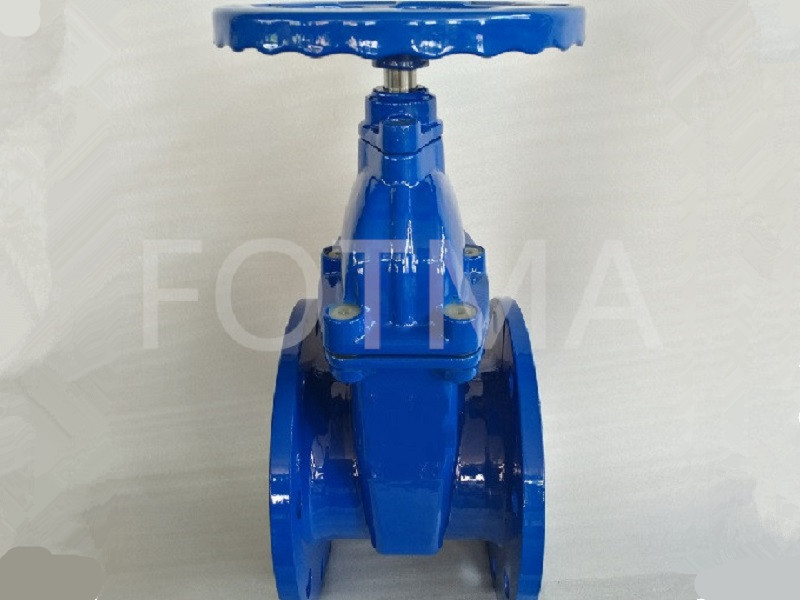

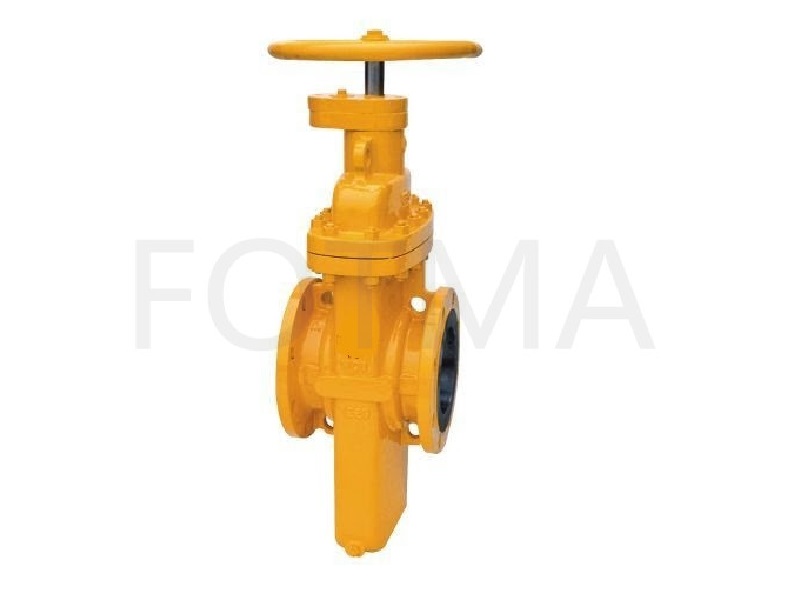

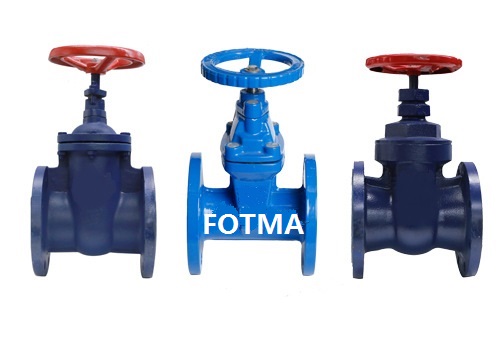

Non-rising stem slab gate valve

Features of Flat Gate Valve:

1. Simple structure and renewable gate and seat assembly .

2. One-piece and double- -acting gate with long service life.

3. Both thrust bearings with large load capacity and composite rubber-plastic stem lip packing minimize operational torque .

4. Bearing cap is provided with a grease cup to make it easy to inject lubricating grease in the field.

5. Threaded packing gland allows removal of bearings and stem packing under line pressure.

6. Both the bolted bonnet and modern bonnet seal ring provide simple structure and reliable sealing .

7. The sealing surfaces of the gate and seat are hardfaced for wear and corrosion resistance .

8. Wave springs are installed between the body and seat and between the gate and seat. The gate and seat still maintain a positive metal to metal seal under low pressure.

9. Floating gate design requests the hand wheel to be backed off 1/4 turn after its rotation can go no further.

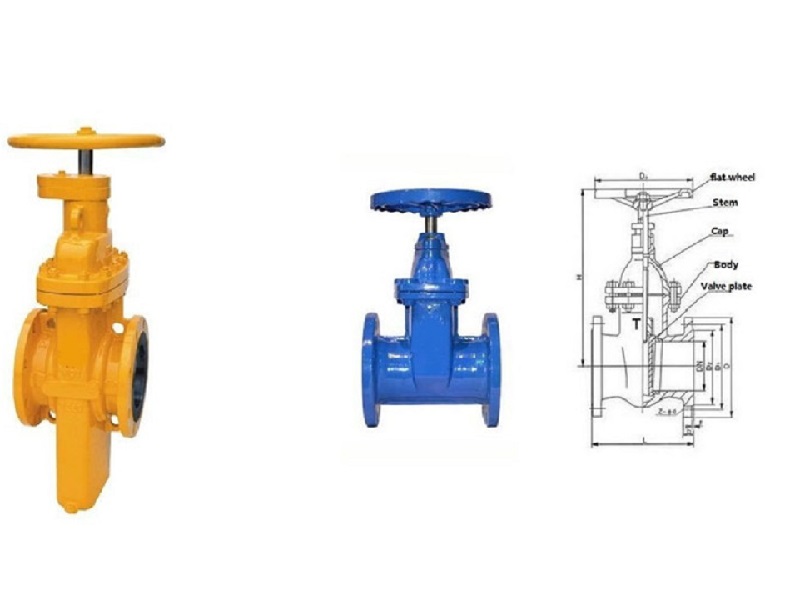

Non-rising stem slab gate valve:

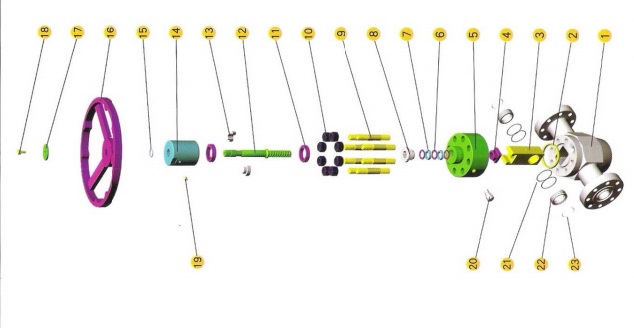

Item	Component	Qty	Material	Code
1	Body	1		SH-VPA-xx-xx-01
2	Bonnet Seal Ring	1	1010	SH-VPA-xx-xx-02
3	Gate	1	4130	SH-VPA-xx-xx-03
4	Gate T- -Nut	1	5140	SH-VPA-xx-xx-04
5	Bonnet	1	4130	SH-VPA-xx-xx-05
6	Packing	2	NBR	SH-VPA-xx-xx-06
7	Packing Ring	3	410	SH-VPA-xx-xx-07
8	Packing Gland	1	4130	SH-VPA-xx-xx-08
9	Bonnet Stud	8	4130	SH-VPA-xx-xx-09
10	Bonnet Nut	8	5140	SH-VPA-xx-xx-10
11	Bearing	2	Standard	SH-VPA-xx-xx-11
12	Stem	1	410	SH-VPA-xx-xx-12
13	Split Bushing	1	5140	SH-VPA-xx-xx-13
14	Bearing Cap	1	5140	SH-VPA-xx-xx-14
15	O-Ring	1	NBR	SH-VPA-xx-xx-15
16	Handwheel	1	1035	SH-VPA-xx-xx-16
17	Washer	1	1035	SH-VPA-xx-xx-17
18	Screw	1	Standard	SH-VPA-xx-xx-18
19	Gease Cup	1	Standard	SH-VPA-xx-xx-19
20	Grease Fitting	1	Standard	SH-VPA-xx-xx-20
21	O-Ring	4	NBR	SH-VPA-xx-xx-21
22	Seat	2	4130	SH-VPA-xx-xx-22
23	Wave Spring	2	410	SH-VPA-xx-xx-23
