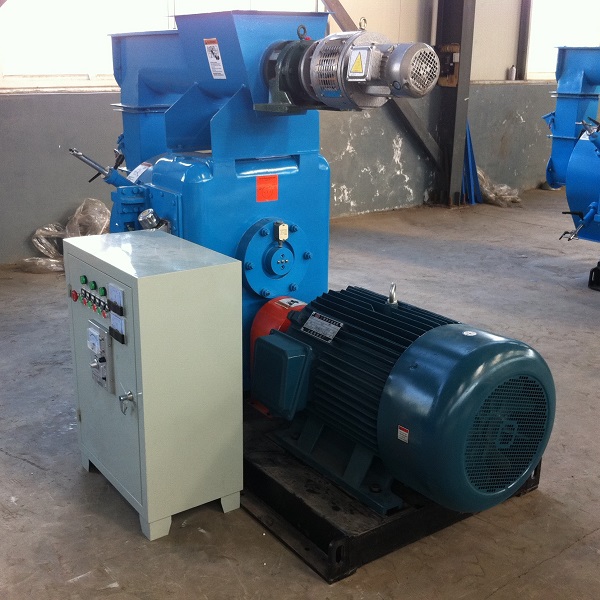

HKJ Series Ring Die Pellet Mill Machine

HKJ Series Ring die pellet mill machine is suitable for large farms, and organic herbal medicine and chemical industry etc., and the raw materials contain straw, wood-dust, bamboo power, cotton wood, peanuts shell, straw, clover, cotton seed shell etc and can mix with all kinds of power materials.
Availability:
Quantity:
  • HKJ

  • FOTMA

Description:

HKJ Series Ring die pellet mill machine is suitable for large farms, and organic herbal medicine and chemical industry etc., and the raw materials contain straw, wood-dust, bamboo power, cotton wood, peanuts shell, straw, clover, cotton seed shell etc and can mix with all kinds of power materials.


Features:

The die diameter we can do is 3, 4, 5, 6, 8, 10, 12 and 15 of the aperture ring die, users can choose according to their different needs.


Technical Data:

Model

HKJ250

HKJ260

HKJ300

Output(kg/h)

1000-1500

1500-2000

2000-2500

Power(kw)

22+1.5+0.55

22+1.5+0.55

30+1.5+0.55

Pellet Size(mm)

3-8

3-8

3-8

Driving mode

V-belt drive

V-belt drive

V-belt drive

Packing size(mm)

1650×1500×1550

1650×1500×1550

1750×1500×1600

Packing weight(kg)

1000

1200

1500

Model

HKJ350

HKJ420

HKJ508

Output(kg/h)

3000-3500

4000-5000

6000-8000

Power(kw)

55+2.2+0.75

90+2.2+1.1

110+2.2+1.1

Pellet Size(mm)

3-10

3-12

3-15

Driving mode

V-belt drive

Gearbox

Gearbox

Packing size(mm)

2300×1500×2200

2500×1200×2300

2500×1300×2400

Packing weight(kg)

2000

3000

3800
