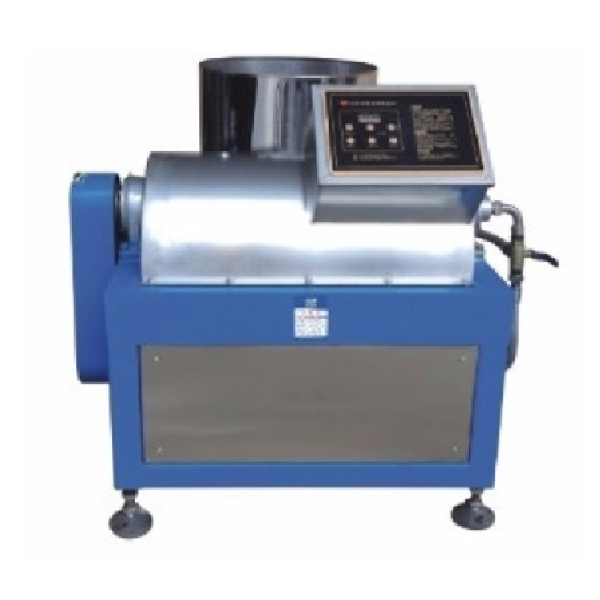

LD Series Centrifugal Type Continous Oil Filter

This Continuous Oil Filter is widely used for press: hot pressed peanut oil, rapeseed oil, soybean oil, sunflower oil, tea seed oil, etc.
Availability:
Quantity:
  • LD

  • FOTMA

Features

1. Operation: vertical centrifugal oil refining, rapid separation of oil sludge, the whole process only takes 5-8 minutes.

2. Automatic control: set the timer, automatically stop the oil, the oil is not stored in the machine, and the refining of hundreds of kilograms only needs to be cleaned once.

3. Installation: flat floor, can be installed without screw fixation.


Technical parameters

Model

LD1

LD2

L380

Capacity

250kg/h

400kg/h

300kg/h

Drum Size

Φ419*220mm

Φ546*220mm

Φ166*550mm

Spindle speed

1440 rpm

1440 rpm

4100 rpm

Main Motor Power

2.2kw

3kw

3kw

Voltage

380V/50Hz

380V/50Hz

380V/50Hz

Connection

Direct connection

Belt type


Weight

120kg

155kg


Dimension

600*600*820mm

950*700*930mm

1020*1050*1000mm

Slag-out

Manual

Manual

Automatic
