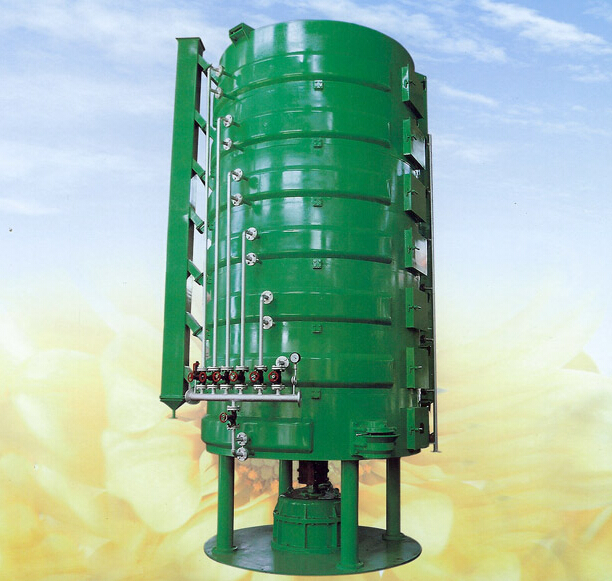

Steaming Cooker

Quantity:
General Description
ZCL series cooker is a main equipment in oil production, mainly used for the cooking of vegetable oil seed. By moisturizing, steaming and cooking, the flaked seed turn into cooked flakes, which fulfills the requiremnt of prepressing and improves the quality of oil.

Model
YZCL120 YZCL150 YZCL180 YZCL210 YZCL250 YZCL250 YZCL300
×4 ×5 ×5 ×5 ×5(6) ×7 ×5(6)
Layers 4 5 5 5 5(6) 7 5(6)
Capacity(T/D) 15-20 25-30 35-50 50-80 80-120 140-160 170-190
Main pressure material Q235-A Q235-A Q235-A Q235-A Q235-A Q235-A Q235-A
Design Pressure(MPa) 0.66 0.66 0.66 0.66 0.66 0.66 0.66
Design Temperature(℃) 168.2 169.6 169.6 164 164 164 164
Working Pressure(MPa) 0.54 0.54 0.54 0.54 0.54 0.54 0.54
Working Medium Saturate Steam Saturate Steam Saturate Steam Saturate Steam Saturate Steam Saturate Steam Saturate Steam
Corrosion(mm) 1 1 1 1 1 1 1
Internal Capacity(m^3) 0.44 0.65 1.31 1.99 2.7(3.24) 3.78 3.9(4.68)
Heating Area(m^2) 7.6 14.15 19.4 25 34.14 47.94 57.5
-41 -69
Inner Diameter of vessel(mm) ф1200 ф1500 ф1800 ф2100 ф2500 ф2500 ф3000
Vessel Category First Class First Class First Class First Class First Class First Class First Class
Rotating Speed of Main Shaft(r/min) 32 32 32 32 20 18 18
Reduction Ratio 01:22.5 1:30 1:30 1:30 01:48.5 1:53 1:53
Reducer Model J22 C032A C032A TBSZ30 ZSL-40 ZT760 ZT-760
Equipped Motor Y160M-6 Y200L1-6  Y200L2-6 Y225M-6 Y250M-6 Y280S-6 Y280S-6
7.5kW 18.5Kw 22Kw 30Kw 37Kw  45KwW 45Kw




Y280S-6
Y280M-6




45Kw
55kW
Dimension(L×W×H) 2233× 2175× 2774× 2900× 4678 5986 4678
1654× 2075× 2300× 2440× -5328 -5328
2710 3850 4250 4250

Weight 3100 5850 7200 9400 13600 17300 -
-15400
