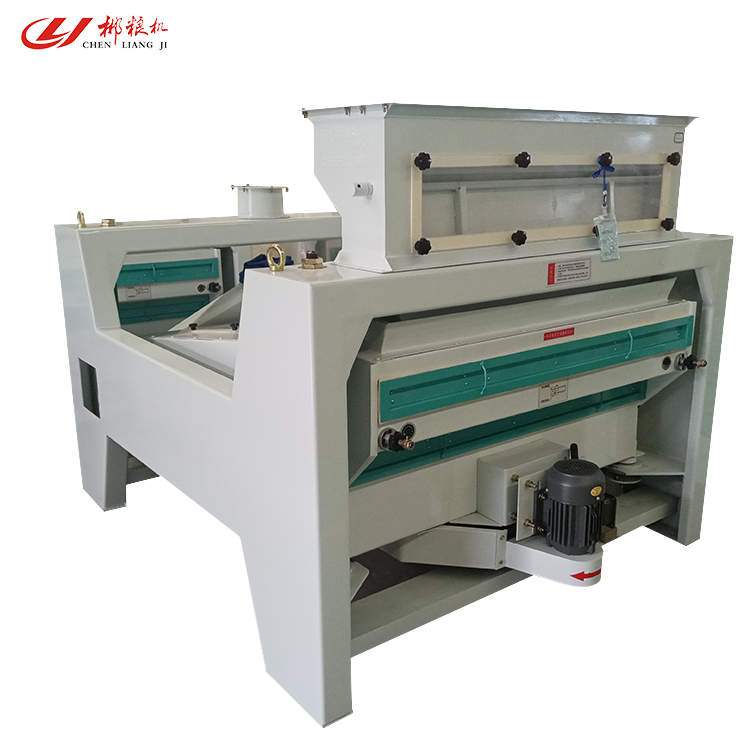

TQLM Series Rotary Cleaning Machine

TQLM Series rotary cleaning machine is used to remove the big, small and light impurities in the grains. It can adjust the rotary speed and the weight of the balance blocks according to removing requests of different materials.
Model:
Quantity:
  • TQLM

  • FOTMA

TQLM Series rotary cleaning machine is used to remove the big, small and light impurities in the grains. It can adjust the rotary speed and the weight of the balance blocks according to removing requests of different materials. At the same time, its body have three types running tracks: The front part (inlet) is oval, the middle part is circle, and the tail part (outlet) is straight reciprocating. The practice proves that, this kind of composite motion form that combined by the motion characteristics of both vibration sieve and rotary sieve is the best matching, according to the change of motion tracks on its screen surface and the characteristic of materials’ impurities. It can get higher cleaning efficiency even with lower power consumption. This rotary cleaning machine is with stable running , low noise, good sealing, currently more welcomed in rice mill plants.

Features:
1. Three different motion tracks on the same machine, the feed end of the machine body is approximately shaken left /right, which is conducive for uniform feeding and automatic grading.
2. The planar circular motion of middle part of the machine is beneficial to separation and removing of impurities;
3. The straight reciprocating motion of outlet part of the paddy cleaner is good for discharging the big impurities.
4. Airtight sieve body equipped with suction device, less dust;
5. Adopt four angle steel rope to hang screen body, smooth operation and durable.
Model TQLM100×2 TQLM125×2 TQLM160×2 TQLM200×2
Capacity(t/h) (Paddy) 4-7 6-9 8-12 10-15
Power 0.75 0.75 1.1 1.1
Air volume (m³/min) 40+20 55+25 70+32 90+40
Weight(kg) 670 730 950 1100
Dimension(L×W×H)(mm) 2150×1400×1470 2150×1650×1470 2150×2010×1470 2150×2460×1470
