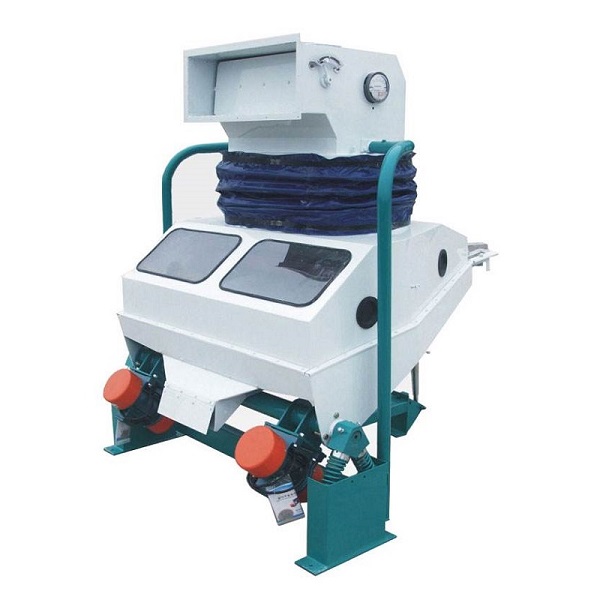

TQSX-A Suction Type Gravity Destoner

1.Adopt double vibration motors, amplitude is adjustable ;
2.Great cleaning effect and no flying dust
3.Indurative and durable
Model:
Quantity:
TQSX-A series suction type gravity stoner primarily used for the food process business enterprise, separate the stones,clods, metal and other impurities from wheat, paddy, rice, coarse cereals and so on. That machine adopt double vibration motors as vibration source, having the characteristics that amplitude adjustable, drive mechanism more reasonable, great cleaning effect, little dust flying, easy to dismantle, assemble, maintain and clean, indurative and durable, etc..

Features:
1. Adopt double vibration motors as vibration source, amplitude is adjustable;
2. Drive mechanism is more reasonable;
3. Great cleaning effect and little flying dust;
4. Easy to dismantle, assemble, maintain and clean;
5. Indurative and durable.
Model TQSX100A TQSX125A TQSX150A TQSX200A TQSX250A
Capacity(t/h) 5-7 7-9 9-11 11-13 13-15
Wind inhaling volume(m3/h) 3800-4100 5400-6200 7100-7600 8000-8500 12500-14500
Device resistance (mmH2O) 40-50 40-50 50-60 50-60 50-60
Power(kw) 0.2×2 0.25×2 0.25×2 0.25×2 0.37×2
Overall dimension
(L×W×H)(mm)
1750×1250×1880 1750×1500×1880 1750×1800×1880 1750×2300×1880 1790×2725×2100
Weight(kg) 400 500 600 750 950
