Wind Turbine Flanges

Flanges for wind turbine towers made by investment casting and forging. Super big flanges made by high quality materials. OEM service supplied. Technical support available.
Quantity:
  • Customized

  • FOTMA

  • Alloy Steel, Stainless steel

  • Machined, sand blasting

  • Welcomed

  • 3000-6000mm

Product Introduction of Wind Turbine Flanges:

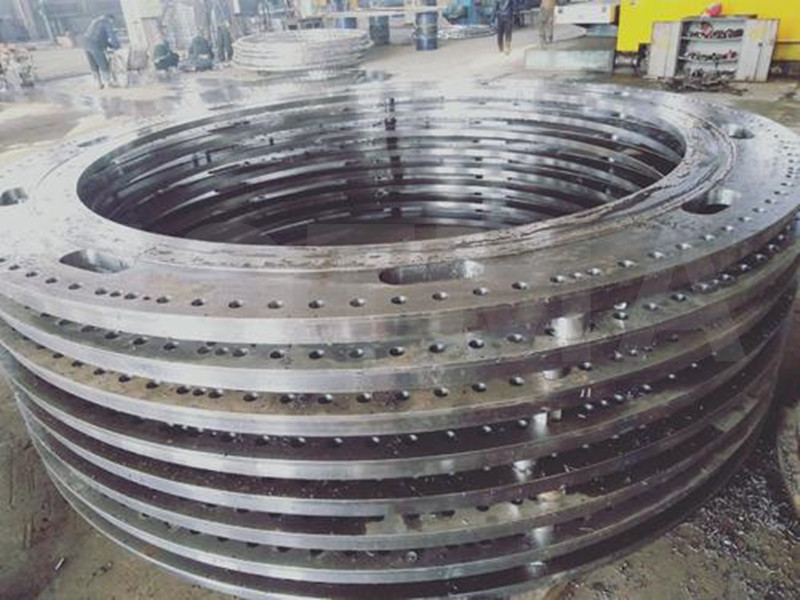

Wind turbine flanges are ring-shaped connectors that are used to assemble the bodies of the steel towers supporting the wind turbines. Tower flange is an important wind power component for tower connection which is installed with six or seven flanges in a wind turbine. Tower Flange consists of three parts: Bottom Flange, Middle Flange, Top Flange.
1. Size: 3000mm-6000mm
2. Type: Plate, blind
3. Standard: According to client's drawings
4. Material: A105, P355, Q345
5. Class: 150#-2500#
6. Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform


Flange Standard
American Standard ASME B16.5,ASME B16.47,ANSI B16.5,API605,AWWA C207
Japanese Standard JIS / KS 5K / 10K / 16K / 20K / 30K
German Standard DIN2527,2528,2561,2565,2566,2573,2576,2627-2638,2641,2642,2655,2656,2673,86029
British Standard BS4504 PN16 / 25 / 40,BS10 TABLE E / TABLE D
Italian Standard UNI 2253,2254,2276,2278,2281,6084-6093
China Standard GB/T 13402-92,GB/T9112-9124-2000,HG5010-5028

Materials Carbon Steel: ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH
P250GH, P280GHM 16MN, 20MN ,20#
Stainless Steel: ASTM A182, F304/304L, F316/316L
Types Slip On Plate Flange/Plate Flange , Slip On Hub Flange/Bossed
Welding Neck Flange/WN flange/ Loose Flange/Lapped Flange /Backing Flange
Blind Flange/Blank flange, Lap Joint Flange /LJ Flange
Socket Weld Flange/SW Flange   Threaded Flange/Screwed Flange
Loose Flange/Lapped Flange Backing Flange RTJ /o-Ring
Custom Flange/Special Flange   Hot/Cold/Electro Gavanized Flange
Standards ANSI/ASME/ASA B16.5 FLANGES, ANSI B16.47 A/B FLANGES
JIS B 2220 FLANGES, KS B 1503, DIN SERIES, UNI, EN1092-1, BS4504
BS 10 TABLE D/E/F FLANGES, SANS 1123 FLANGES/SABS 1123
GOST12820-80/GOST12821-80, NFE29203/NS/AS/ISO/AWWA FLANGES
Pressure &Ratings 150LBS, 300,600,900,1500,2500 ANSI, ASA B16.5
PN6 PN10 PN16 PN25 PN40 PN64-DIN/UNI
PN6 PN10 PN16 PN25 PN40 PN63-EN1092-1/BS4504
PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0-GOST12820-80
PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0, PN6.3. -GOST12821-80
600kPa, 1000.1600.2500.4000.-SANS 1123
5KG, 10KG, 16KG, 20KG, 30KG, 40KG-JIS B2220/KS B1503
TABLE D, TABLE E ,TABLE F-BS 10, AS2129
CLASS D, CLASS E, CALSS F, AWWA C207
Surface Treatment Rust Prevention , Black Paint Coating or Phosphating Treatment with Black Color
Varnish Paint Coating, Varnish Oil Coating,
Electro Galvanizing Coating (Cold Galvanizing, Color Golden or silvery white, Coating thickness 20 ~ 30μm)
Hot Dip Galvanizing Coating (Coating Thickness 200μm around)
Technical Forging
Application Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry
and general pipes connecting projects etc.
Inspection Quality Control System-Well Equipment, and Machinery-Well Workers and Engineers
Packing Wooden Pallets or Wooden Cases or As Customers' Requirements
Payment Terms L/C   T/T
Delivery Time 30 -- 45 Days ex mill
After-Sales Service Orders and Products Tracking System
