X-mas Tree and Tubing Head Cross

The pressurization parts of the Christmas trees and tubing spools are made of forged or special smelted forging, so it is high-pressurization safety and so on .

Quantity:



Inquire Add to Basket

Brand:
FOTMA
Pressure Gauge Qty:
2
Bull Plug Material:
4130
Tree Cap Material:
4130

Product Description

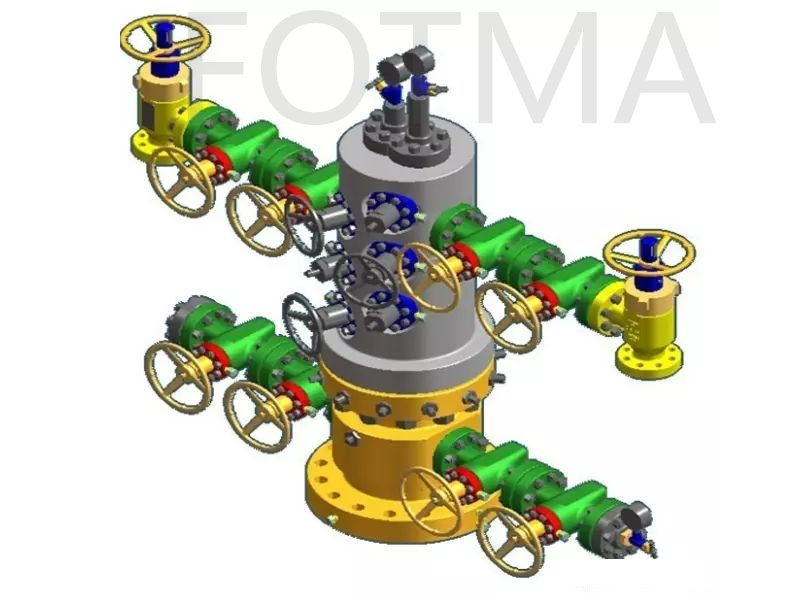

X-mas Tree and Tubing Head Cross

The pressurization parts of the Christmas trees and tubing spools are made of forged or special smelted forging, so it is high-pressurization safety and so on .

Item	Component	Qty	Material	Remark
1	Pressure Gauge	2
2	Neddle Valve	1
3	Bull Plug	1	4130
4	Instrument Flange	2	4130
5	Gate Valve	6		See P7
6	Tubing Spool	1	4130	See P4
7	Tubing Head Adapte	1	4130
8	Gate Valve	3		See P7
9	Cross	1	4130
10	Choke Valve	2		See P15
11	Tree Cap	1	4130
12	Neddle Valve	1

Tubing head spool:
1. Tubing head structure
Tubing head is usually a spool with both flanged ends，which is set on the top flange of casing head to hang tubing hanger and seal the annular space between the tubing string and oil-layer casing and which consists of tubing head spool and tubing hanger.

2. Functions:
1) hang the tubing string inside well;
2) seal the annular space between tubing and casing ;
3) give a crossover to connect casing head downwards and to connect x’mas tree upwards;
4) provide both side outlets in tubing head spool body through which to execute injection and well-wash operation.

3. Tubing hanger
Tubing hanger is an assembly to support tubing string and seal the annular space between tubing and casing,which is connected with tubing and seated into tubing hanger spool by tubing gravity. It is convenient to operate and replace wellhead so that it is widely used for intermediate depth well and common well.

Tubing head cross:

Item	Component	Qty	Material	Remark
1	Grease Fitting	6
2	BT Seal Ring	2	NBR
3	Tubing Spool	1	4130
4	Tubing Hanger	1	4130
5	Lock Screw	12	4130
6	Packing Nut	12	5140
7	Packing	60	PTFE
8	Packing Washer	24	410

Tubing hanger:

Item	Component	Qty	Material	Remark
1	Tubing Hanger Body	6	4130
2	Nut	2	1045
3	Gasket	1	4130
4	Seal Ring	1	NBR
5	0-Ring	12	NBR
6	0-Ring	12	NBR

Technical Parameters for X-mas Tree Assembly:

Parameter	Type
Parameter	KY65/25	KQ65/60
Rated Pressure	3500psi	8500psi
Nominal Size	2^9/16”	2^9/16”
Working Temperature	P∪	PU
Available Medium	Crude & Water	Crude & Water
Connection Type	Clamp Connection	Flanged Connection
Material Class	AA thru DD	AA thru FF
PSL	PSL1 & 2	PSL1 thru 3
PR	PR1&2	PR1&2

Technical Parameters for X-mas and Tubing Heads:

Parameter		Type
Parameter		KQ65/21	KQ65/35	KQ80-65/35	KQ65/70	KQ78-65/70	KQ65/105	KQ78-65/105
Rated Pressure		3000psi	5000psi	5000psi	10000psi	10000psi	1 5000psi	1 5000psi
Nominal Size	Main	2^9/16”	2^9/16”	3^1/8”	2^9/16”	3^1/16”	2^9/16”	3^1/16”
Nominal Size	Side	2^9/16”	2^9/16”	2^9/16”	2^9/16”	2^9/16”	2^9/16”	2^9/16”
Working Temperature		PU	PU	PU	PU	PU	PU	PU
Available Medium		Crude, Gas	Crude, Gas	Crude, Gas	Crude, Gas	Crude, Gas	Crude, Gas	Crude, Gas
PSL		PSL1 thru 3	PSL1 thru 3	PSL1 thru 3	PSL1 thru 3	PSL1 thru 3	PSL1 thru 3	PSL1 thru 3
Material Class		AA thru FF	AA thru FF	AA thru FF	AA thru FF	AA thru FF	AA thru FF	AA thru FF
PR		PR1&2	PR1&2	PR1&2	PR1&2	PR1&2	PR1&2	PR1&2
Connection Type\|		Clamp, Flanged	Clamp,Flanged	Clamp, Flanged	Flanged	Clamp, Flanged	Flanged	Flanged
