ZCG Ultra High Pressure Solenoid Valves

German hardcover, substitute for import, good technology, super long life
Quantity:
  • ZCG Ultra

  • FOTMA

  • DN1~50mm

  • Pilot Piston Mode

  • Standard: -20℃~60℃

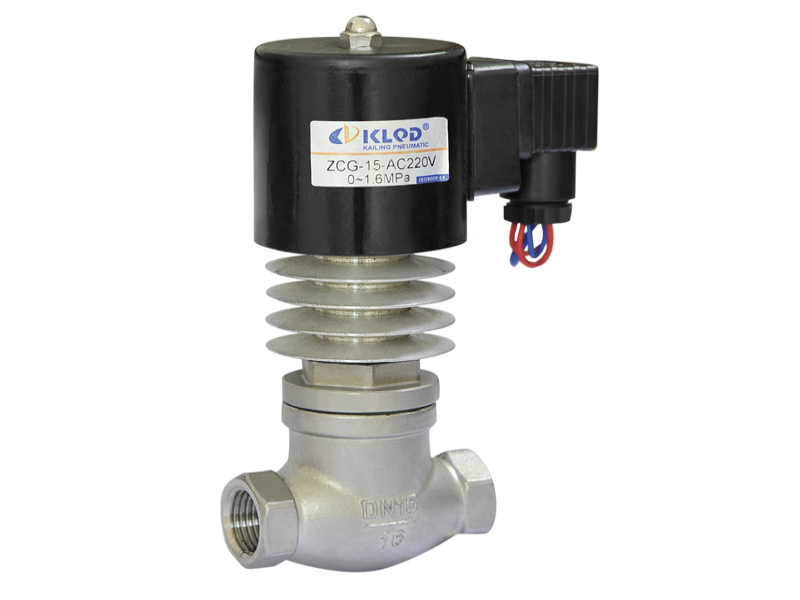

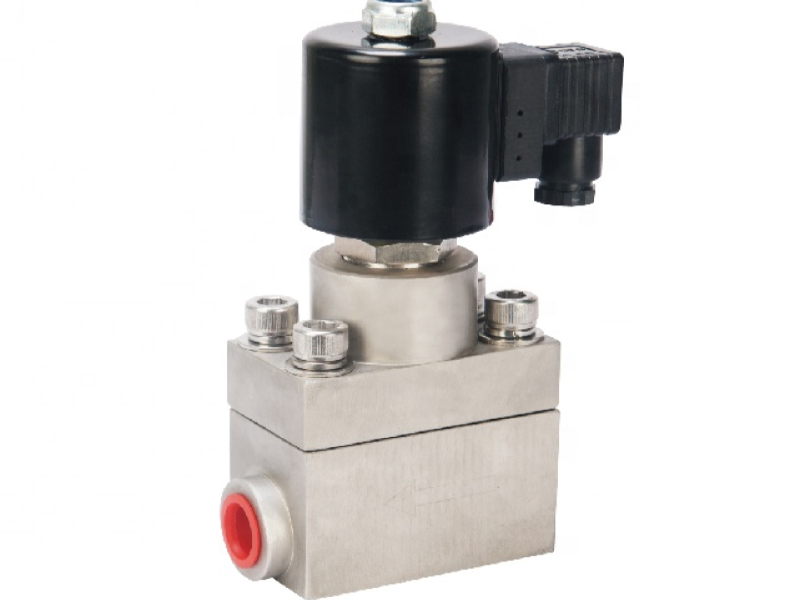

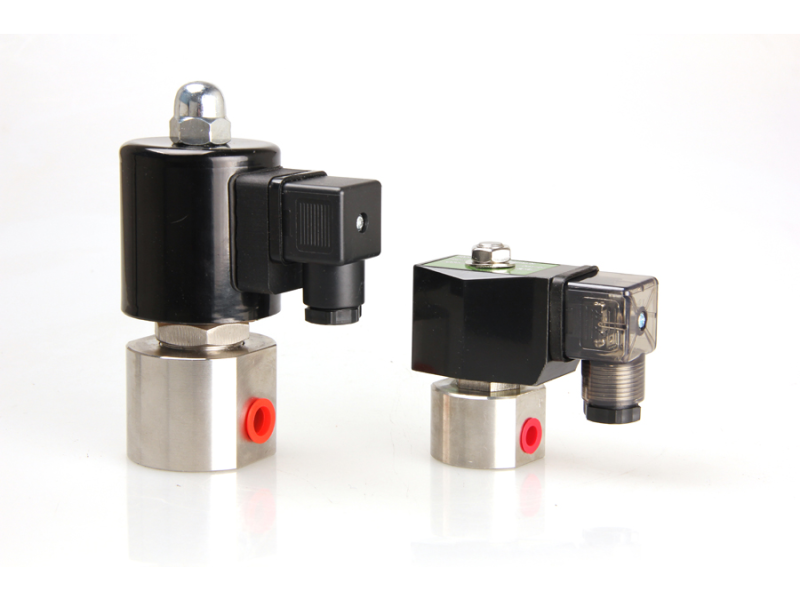

ZCG Ultra High Pressure Solenoid Valves
Nominal DiameterDN1-50mm
German hardcover, substitute for import, good technology, super long life
Military-industrial supporting, good quality, wide application, Economical and applicable


Technical Parameters
DN DN1~50mm
Connection Mode English system G internal thread(Special thread, flange, welding mode can be customized)
Principle Pilot Piston Mode
Body Material Stainless 304, 316(-R), 316L(-RL) can be customized
Seal Material NBR, FKM, PTFE,  Others please consult
Suitable Medium Liquid, Gas, Oil(No granular impurity)
Medium Temperature 1.-20℃~80℃ 2.-20℃~150℃ 3.100℃~200℃ 4.120℃~250℃  Others please consult us
Ambient Medium Temperature Standard: -20℃~60℃
Installation Mode Horizontal installation,coil vertical upward(others please consult)
Protection Level Iron Housing:IP54  Anti-explosion:IP65

Notes: Special working conditions can also be designed and manufactured according to the actual situation of customers

Installation Size

Model Description

ZCG Ultra High Pressure Solenoid Valves
Product Usage
  Mainly used in petrochemical, HVAC, medical equipment, food machinery, agricultural machinery, analytical instruments, stage equipment, rubber and plastic machinery, air compressors, bottle blowing machines, filling equipment, brewing equipment, generator sets, environmental protection water treatment , industrial kiln, boiler burner, welding and cutting and other products supporting and related industries automation control system.
